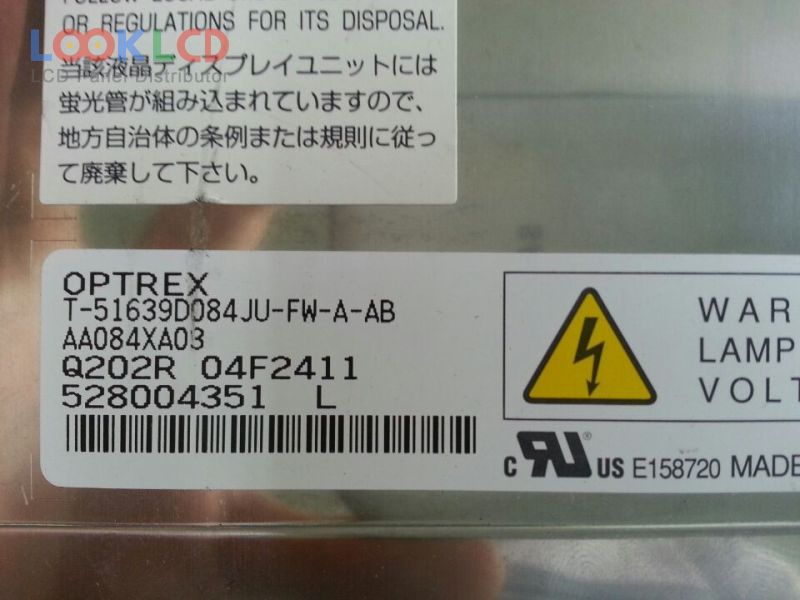

| Nambari ya Sehemu | T-51639D084JU-FW-A-AB |
| Chapa | Kyocera |
| Ukubwa | 8.4 |
| Maombi | IA |
| Azimio | 1024×768 |
| Muundo | LCM |
| Mwangaza | 300 |
| CR | 400:1 |
| Rangi | 262K/16.7M |
| Mwangaza nyuma | CCFL |
| Kiolesura | LVDS |
| chapa ya paneli | OPTREX |
| mfano wa paneli | T-51639D084JU-FW-A-AB 2 Compatible model |
| aina ya paneli | a-Si TFT-LCD , LCM |
| saizi ya paneli | 8.4 inch |
| azimio | 1024(RGB)×768 , XGA |
| hali ya kuonyesha | TN, Normally White, Transmissive |
| eneo la kazi | 171.264×128.448 mm |
| muhtasari | 205×152.4 mm |
| uso | Antiglare, Hard coating (3H) |
| mwangaza | 300 cd/m² (Typ.) |
| uwiano wa utofautishaji | 400:1 (Typ.) |
| kuonyesha rangi | 262K/16.7M (6-bit / 6-bit + Hi-FRC) |
| wakati wa majibu | 6/19 (Typ.)(Tr/Td) |
| angle ya kutazama | 65/65/60/50 (Typ.)(CR≥10)(L/R/U/D) |
| masafa | 60Hz |
| aina ya taa | 2 pcsCCFLWithout Driver |
| kiolesura cha ishara | LVDS (1 ch, 6/8-bit), 20 pins |
| voltage ya pembejeo | 3.3V (Typ.) |
| rohs: | |
| maombi | IA |
