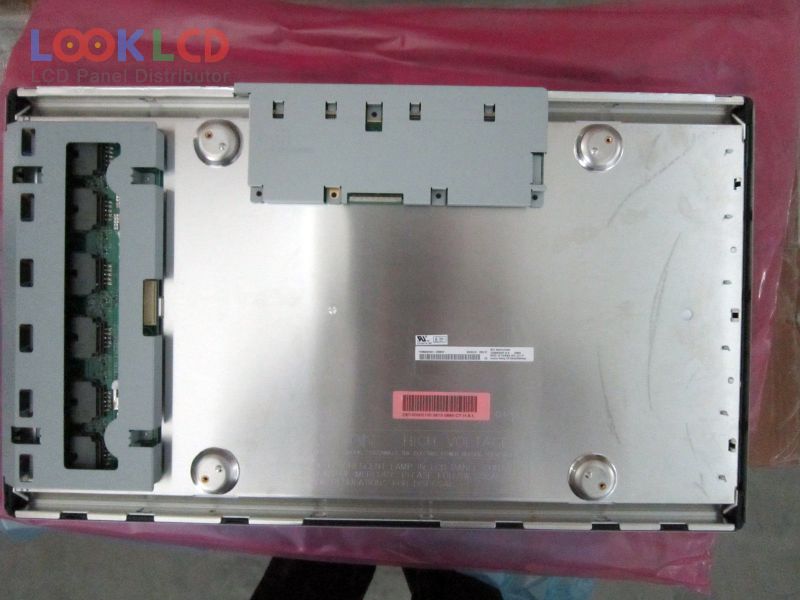

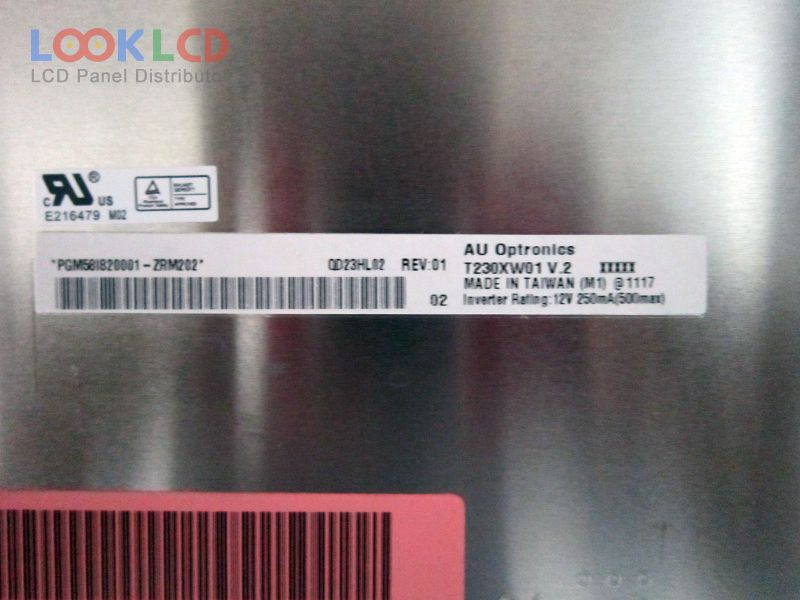

| Nambari ya Sehemu | T230XW01 V2 |
| Chapa | AUO |
| Ukubwa | 23.0 |
| Maombi | LCTV |
| Azimio | 1366×768 |
| Muundo | LCM |
| Mwangaza | 500 |
| CR | 450:1 |
| Rangi | 16.7M |
| Mwangaza nyuma | CCFL |
| Kiolesura | LVDS |
| chapa ya paneli | AUO |
| mfano wa paneli | T230XW01 V2 1 Compatible model |
| aina ya paneli | a-Si TFT-LCD , LCM |
| saizi ya paneli | 23.0 inch |
| azimio | 1366(RGB)×768 , WXGA |
| hali ya kuonyesha | TN, Normally White, Transmissive |
| eneo la kazi | 508.152×285.696 mm |
| muhtasari | 546×318.3 mm |
| uso | Antiglare (Haze 26%), Hard coating (3H) |
| mwangaza | 500 cd/m² (Typ.) |
| uwiano wa utofautishaji | 450:1 (Typ.) |
| kuonyesha rangi | 16.7M (8-bit) |
| wakati wa majibu | 6/10 (Typ.)(Tr/Td) |
| angle ya kutazama | 70/70/65/60 (Typ.)(CR≥10)(L/R/U/D) |
| masafa | 60Hz |
| aina ya taa | 8 pcsCCFLEmbedded (Inverter) |
| kiolesura cha ishara | LVDS (1 ch, 8-bit), 30 pins |
| voltage ya pembejeo | 12.0V (Typ.) |
| maombi | LCTV |
