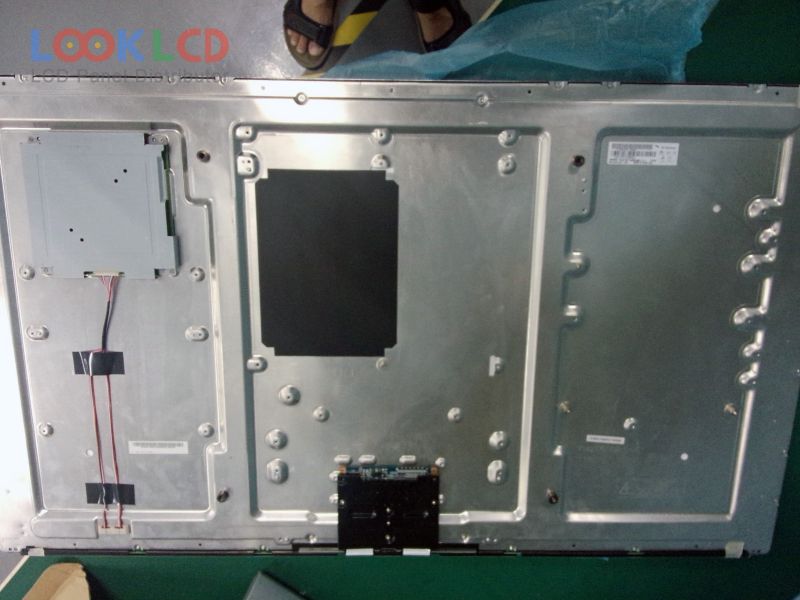

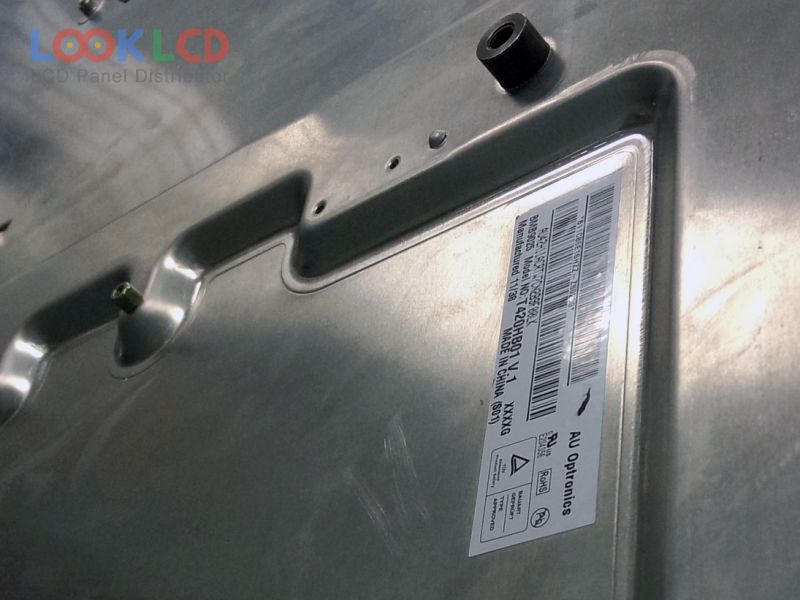

| Nambari ya Sehemu | T420HB01 V1 |
| Chapa | AUO |
| Ukubwa | 42 |
| Maombi | LCTV |
| Azimio | 1920×1080 |
| Muundo | LCM |
| Mwangaza | 360 |
| CR | 3500:1 |
| Rangi | 16.7M |
| Mwangaza nyuma | WLED |
| Kiolesura | LVDS |
| chapa ya paneli | AUO |
| mfano wa paneli | T420HB01 V1 |
| aina ya paneli | a-Si TFT-LCD , LCM |
| saizi ya paneli | 42 inch |
| azimio | 1920(RGB)×1080 , FHD |
| hali ya kuonyesha | AMVA, Normally Black, Transmissive |
| eneo la kazi | 930.24×523.26 mm |
| muhtasari | 968.4×564×28.7 mm |
| uso | |
| mwangaza | 360 cd/m² (Typ.) |
| uwiano wa utofautishaji | 3500:1 (Typ.) |
| kuonyesha rangi | 16.7M (8-bit), CIE193172% |
| wakati wa majibu | 6.5 (Typ.)(G to G) |
| angle ya kutazama | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| masafa | 60Hz |
| aina ya taa | WLEDEmbedded (LED Driver) |
| kiolesura cha ishara | LVDS (2 ch, 10-bit), 51 pins |
| voltage ya pembejeo | 12.0V (Typ.) |
| maombi | LCTV |
