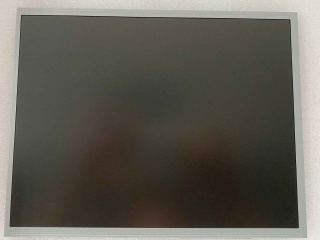

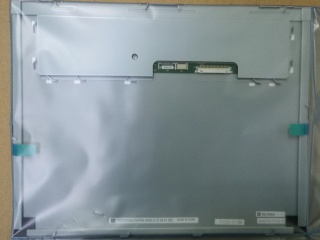

| Nambari ya Sehemu | TCG121XGLPAPNN-AN20-S |
| Chapa | Kyocera |
| Ukubwa | 12.1 |
| Maombi | Industrial |
| Azimio | 1024×768 |
| Muundo | a-Si TFT-LCD, LCM |
| Mwangaza | |
| CR | 750:1 |
| Rangi | 262K/16.2M |
| Mwangaza nyuma | WLED |
| Kiolesura | LVDS |
| chapa | Kyocera |
| mfano | TCG121XGLPAPNN-AN20-S |
| ukubwa wa diagonal | 12.1 inch |
| aina | a-Si TFT-LCD, LCM |
| muundo wa pixel | 1024(RGB)×768 [XGA] 105PPI |
| usanidi | RGB Vertical Stripe |
| eneo la kazi | 245.76(H)×184.32(V) mm |
| muhtasari dim. | 260.5(H)×203.4(V) ×10.8(D) mm |
| eneo la bezel | 249.0(H)×187.5(V) mm |
| matibabu | Antiglare |
| mwangaza | 500 cd/m² (Typ.) |
| uwiano wa utofautishaji | 750:1 (Typ.) (TM) |
| tazama mwelekeo | Symmetry |
| wakati wa majibu | 18/12 (Typ.)(Tr/Td) |
| angle ya kutazama | 85/85/85/85 (Typ.)(CR≥10) |
| hali ya uendeshaji | AWV, Normally Black, Transmissive |
| rangi ya msaada | 262K/16.2M 50% NTSC |
| chanzo cha mwanga | WLED , 50K hours , With LED Driver |
| uzito | 670g |
| iliyoundwa kwa ajili ya | Industrial |
| kiwango cha fremu | 60Hz |
| jopo la kugusa | Without |
| aina ya kiolesura | LVDS (1 ch, 6/8-bit) , 20 pins Connector |
| usambazaji wa nguvu | 3.3V (Typ.) |
| mazingira | Operating Temperature: -30 ~ 80 °C ; Storage Temperature: -30 ~ 80 °C |
| AA121SL09 | Mitsubishi | 12.1 | 800×600 |
| AA121SL12 | Mitsubishi | 12.1 | 800×600 |
| AA121TD02 | Mitsubishi | 12.1 | 1280×800 |
| HX121WX1-111 | HYDIS | 12.1 | 1280×800 |
| LM12S472 | SHARP | 12.1 | 800×600 |
| LMG9980ZWCC-01 | KOE | 12.1 | 800×600 |
| LP121WX3-TLA1 | LG Display | 12.1 | 1280×800 |
| LTD121EWEK | TOSHIBA | 12.1 | 1280×800 |
| N121I7-L01 | Innolux | 12.1 | 1280×800 |
| TCG121XGLPAPNN-AN20 | Kyocera | 12.1 | 1024×768 |
