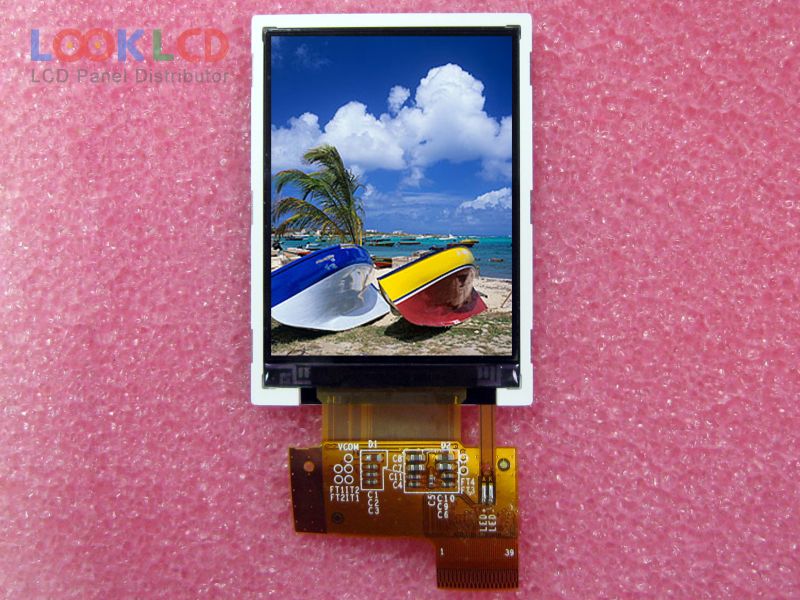

| Nambari ya Sehemu | TM022HDHT1-05 |
| Chapa | Tianma |
| Ukubwa | 2.2 |
| Maombi | MPH |
| Azimio | 240×320 |
| Muundo | LCM |
| Mwangaza | 90 |
| CR | 120:1 |
| Rangi | 262K |
| Mwangaza nyuma | WLED |
| Kiolesura | TTL |
| chapa ya paneli | TIANMA |
| mfano wa paneli | TM022HDHT1-05 2 Compatible model |
| aina ya paneli | a-Si TFT-LCD , LCM |
| saizi ya paneli | 2.2 inch |
| azimio | 240(RGB)×320 , QVGA |
| hali ya kuonyesha | ECB, Normally White, Transflective |
| eneo la kazi | 33.84×45.12 mm |
| muhtasari | 40.6×56.6 mm |
| uso | Clear, Hard coating (3H) |
| mwangaza | 90 cd/m² (Typ.) |
| uwiano wa utofautishaji | 120:1 (Typ.)(Transmissive) |
| kuonyesha rangi | 262K (6-bit), CIE193130% |
| wakati wa majibu | 35 (Typ.)(Tr+Td) |
| angle ya kutazama | 40/45/48/45 (Typ.)(CR≥10)(L/R/U/D) |
| masafa | 60Hz |
| aina ya taa | 4S1PWLEDWithout Driver |

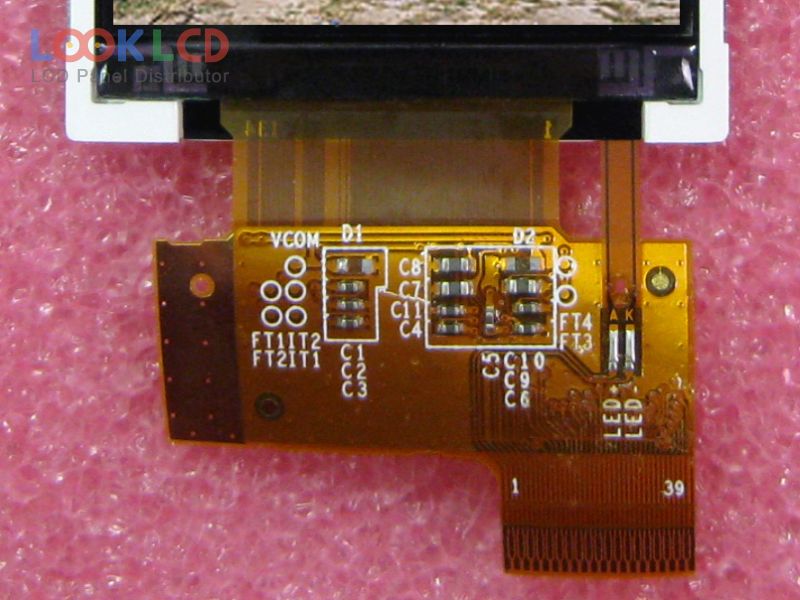

| kiolesura cha ishara | Parallel RGB (1 ch, 6-bit) + SPI, 39 pins |
| voltage ya pembejeo | 2.8V (Typ.)(VDD) |
| maombi | MPH |
