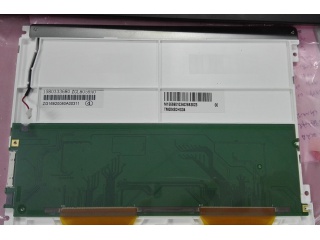

| Nambari ya Sehemu | TM084SDHG04 |
| Chapa | TIANMA |
| Ukubwa | 8.4 |
| Maombi | Industrial |
| Azimio | 800×600 |
| Muundo | a-Si TFT-LCD, LCM |
| Mwangaza | |
| CR | 500:1 |
| Rangi | 262K |
| Mwangaza nyuma | 8S3P |
| Kiolesura | LVDS |
| chapa ya paneli | TIANMA |
| mfano wa paneli | TM084SDHG04 |
| saizi ya paneli | 8.4" |
| aina ya paneli | a-Si TFT-LCD, LCM |
| azimio | 800(RGB)×600, SVGA, 119PPI |
| muundo wa pixel | RGB Vertical Stripe |
| eneo la maonyesho | 170.4(W)×127.8(H) mm |
| ufunguzi wa bezel | 173.0(W)×130.6(H) mm |
| saizi ya muhtasari | 203(W)×143.5(H) ×7.05(D) mm |
| uso | Antiglare |
| mwangaza | 350 cd/m² (Typ.) |
| uwiano wa utofautishaji | 500:1 (Typ.) (TM) |
| angle ya kutazama | 70/70/60/70 (Typ.)(CR≥10) |
| hali ya kuonyesha | TN, Normally White, Transmissive |
| mwonekano bora zaidi | 12 o'clock |
| wakati wa majibu | 20 (Typ.)(Tr+Td) |
| kuonyesha rangi | 262K 40% NTSC |
| aina ya taa | 8S3P WLED , 30K hours , With LED Driver |
| masafa | 60Hz |
| skrini ya kugusa | Without |
| uzito wa paneli | 240g (Typ.) |
| maombi | Industrial |
| kiolesura cha ishara | LVDS (1 ch, 6-bit) , 20 pins Connector |
| voltage ya pembejeo | 3.3V (Typ.) |
| mazingira | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
| AA084XB01 | Mitsubishi | 8.4 | 1024×768 |
| B084SN01 V2 | AUO | 8.4 | 800×600 |
| LQ9D001 | SHARP | 8.4 | 640×480 |
| LQ9D024 | SHARP | 8.4 | 640×480 |
| NL6448BC26-27 | NLT | 8.4 | 640×480 |
| TM084SBHG04 | Tianma | 8.4 | 800×600 |
| TM084SDHG01 | Tianma | 8.4 | 800×600 |
| TM084SDHG02 | Tianma | 8.4 | 800×600 |
| TM084SDHG03 | Tianma | 8.4 | 800×600 |
| TM084SDHG50 | Tianma | 8.4 | 800×600 |
