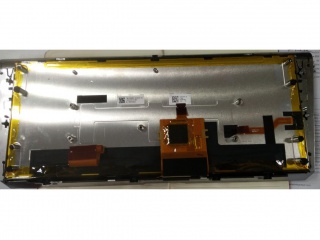

| Nambari ya Sehemu | TM123XDHP01 |
| Chapa | TIANMA |
| Ukubwa | 12.3 |
| Maombi | Industrial Automotiv |
| Azimio | 1920×720 |
| Muundo | a-Si TFT-LCD , LCM |
| Mwangaza | |
| CR | 1000:1 |
| Rangi | 16.7M |
| Mwangaza nyuma | WLED |
| Kiolesura | |
| chapa | TIANMA |
| ukubwa wa diagonal | 12.3 inch |
| muundo wa pixel | 1920(RGB)×720 166PPI |
| eneo la kazi | 292.32(H)×109.62(V) mm |
| mwangaza | - |
| tazama mwelekeo | Symmetry |
| angle ya kutazama | - |
| rangi ya msaada | 16.7M sRGB |
| uzito | - |
| kiwango cha fremu | 60Hz |
| mazingira | Operating Temperature: -40 ~ 85 °C ; Storage Temperature: -40 ~ 95 °C |
| mfano | TM123XDHP01 |
| aina | a-Si TFT-LCD , LCM |
| usanidi | RGB Vertical Stripe |
| muhtasari dim. | - |
| uwiano wa utofautishaji | 1000:1 (Typ.) (TM) |
| wakati wa majibu | 25 (Typ.)(Tr+Td) |
| hali ya uendeshaji | SFT, Normally Black, Transmissive |
| chanzo cha mwanga | WLED |
| iliyoundwa kwa ajili ya | Industrial Automotive Display |
| jopo la kugusa | Without |
| C123HAN01.0 | AUO | 12.3 | 1920×720 |
| C123HAN01.1 | AUO | 12.3 | 1920×720 |
| LA123WF1-SL01 | LG Display | 12.3 | 1920×720 |
| LAM1233548D | JDI | 12.3 | 1920×720 |
| LD123UX1-SMA1 | LG Display | 12.3 | 1600×1200 |
| LQ123K1LG03 | SHARP | 12.3 | 1280×480 |
| LQ123K3LG01 | SHARP | 12.3 | 1280×480 |
| TJ123NP01AA | TPO | 12.3 | 1280×480 |
| TJ123NP01CA | Innolux | 12.3 | 1280×480 |
| TX31D200VM0BAA | KOE | 12.3 | 1280×480 |
