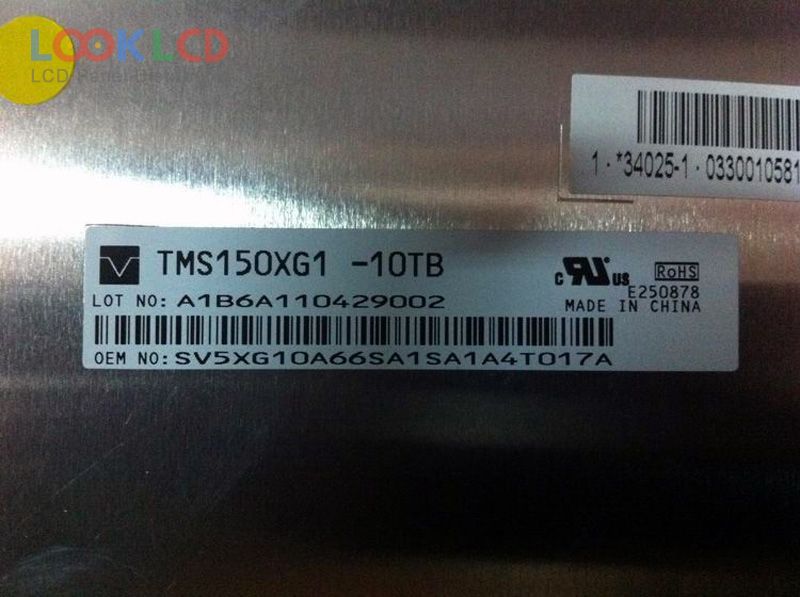

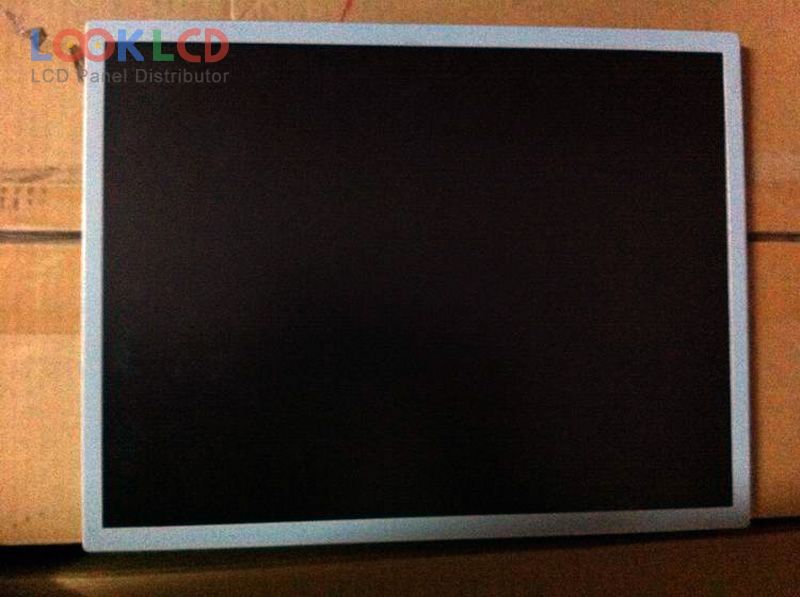

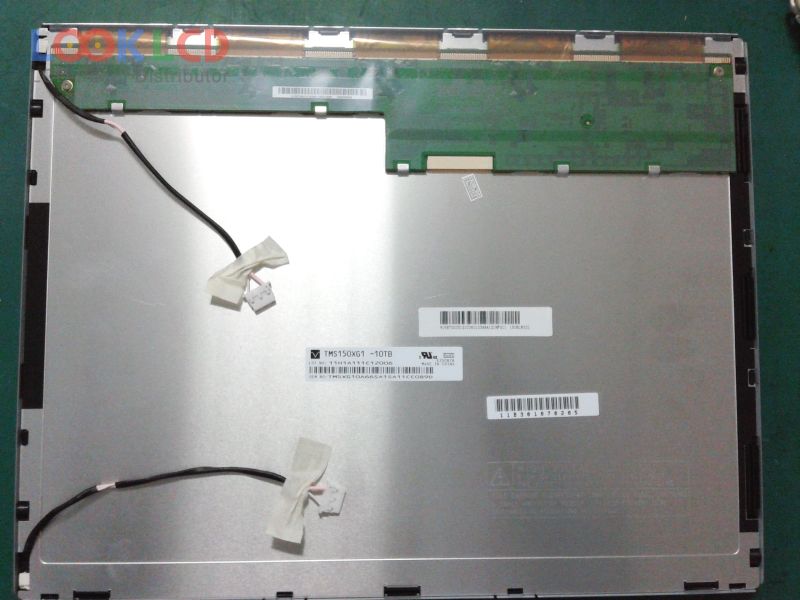

| Nambari ya Sehemu | TMS150XG1-10TB |
| Chapa | Tianma |
| Ukubwa | 15.0 |
| Maombi | DMPC |
| Azimio | 1024×768 |
| Muundo | LCM |
| Mwangaza | 250 |
| CR | 600:1 |
| Rangi | 16.7M |
| Mwangaza nyuma | CCFL |
| Kiolesura | LVDS |
| chapa ya paneli | AVIC |
| mfano wa paneli | TMS150XG1-10TB |
| aina ya paneli | a-Si TFT-LCD , LCM |
| saizi ya paneli | 15.0 inch |
| azimio | 1024(RGB)×768 , XGA |
| hali ya kuonyesha | TN, Normally White, Transmissive |
| eneo la kazi | 304.128×228.096 mm |
| muhtasari | 326.5×253.5×12 mm |
| uso | Antiglare |
| mwangaza | 250 cd/m² (Typ.) |
| uwiano wa utofautishaji | 600:1 (Typ.) |
| kuonyesha rangi | 16.7M (6-bit + Hi-FRC), CIE193160% |
| wakati wa majibu | 2/6 (Typ.)(Tr/Td) |
| angle ya kutazama | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| masafa | 60Hz |
| aina ya taa | 2 pcsCCFLWithout Driver |
| kiolesura cha ishara | LVDS (1 ch, 8-bit), 20 pins |
| voltage ya pembejeo | 3.3V (Typ.) |
| maombi | DMPC |
| LM170E03-TLJ2 | LG Display | 17.0 | 1280×1024 |
| LM201WE4-TLB2 | LG Display | 20.1 | 1680×1050 |
| LM215WF2-SLC1 | LG Display | 21.5 | 1920×1080 |
| LM270WF1-TLA1 | LG Display | 27.0 | 1920×1080 |
| LM270WQ1-SDC2 | LG Display | 27.0 | 2560×1440 |
| LTM200KT05 | Samsung | 20.0 | 1600×900 |
| LTM200KT12 | Samsung | 20.0 | 1600×900 |
| M170EG01 V0 | AUO | 17.0 | 1280×1024 |
| NL160120BC27-14 | NLT | 21.3 | 1600×1200 |
| NL192120AC25-02 | NLT | 22.5 | 1920×1200 |
