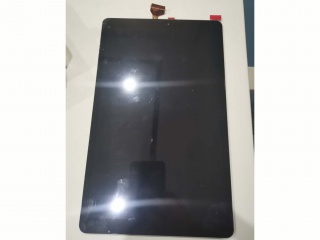

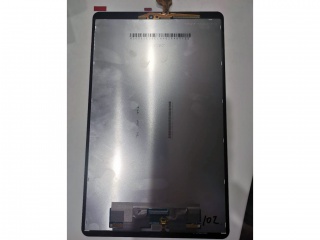

| Nambari ya Sehemu | TV105WUM-AS0 |
| Chapa | BOE |
| Ukubwa | 10.5 |
| Maombi | Pad & Tablet |
| Azimio | 1200×1920 |
| Muundo | Assembly , a-Si TF |
| Mwangaza | |
| CR | 900:1 |
| Rangi | 16.7M |
| Mwangaza nyuma | 4 |
| Kiolesura | MIPI |
| mtengenezaji | BOE |
| ukubwa wa skrini | 10.5 inch |
| nambari ya pixel | 1200(RGB)×1920 (WUXGA) 215PPI |
| eneo amilifu(mm) | 141.3 × 226.08 (H×V) |
| eneo la bezel(mm) | - |
| mwangaza | 480 cd/m² (Typ.) |
| angle ya kutazama | 85/85/85/85 (Typ.)(CR≥10) |
| mtazamo mzuri | Symmetry |
| kina cha rangi | 16.7M 92% DCI-P3 |
| wingi | 216g (Typ.) |
| kiwango cha upya | 60Hz |
| aina ya ishara | MIPI (4 data lanes) , 34 pins Connector |
| usambazaji wa voltage | 1.8/5.8/-5.8V (Typ.)(VDD/VSP/VSN) |
| max. ukadiriaji | Storage Temp.: -55 ~ 125 °C Operating Temp.: -20 ~ 85 °C |
| jina la mfano | TV105WUM-AS0 |
| aina ya skrini | Assembly , a-Si TFT-LCD |
| mpangilio | RGB Vertical Stripe |
| muhtasari(mm) | 156.18 × 255.06 × 4.44 (H×V×D) |
| matibabu | Hard coating |
| uwiano wa utofautishaji | 900 : 1 (Typ.) (TM) |
| majibu | 25 (Typ.)(Tr+Td) ms |
| hali ya kazi | - |
| backlight | 4 strings WLED , No Driver |
| kutumika kwa | Pad & Tablet |
| skrini ya kugusa | PCAP |
