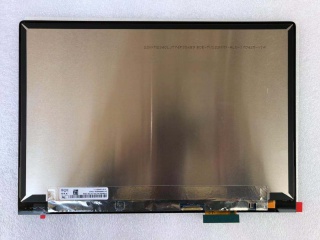

| Nambari ya Sehemu | TV122WXM-AL0 |
| Chapa | BOE |
| Ukubwa | 12.2 |
| Maombi | Laptop |
| Azimio | 1280×800 |
| Muundo | LCM , a-Si TFT-LCD |
| Mwangaza | |
| CR | 900:1 |
| Rangi | 16.7M |
| Mwangaza nyuma | WLED |
| Kiolesura | eDP |
| mtengenezaji | BOE |
| jina la mfano | TV122WXM-AL0 |
| ukubwa wa skrini | 12.2 inch |
| aina ya skrini | LCM , a-Si TFT-LCD |
| nambari ya pixel | 1280(RGB)×800 (WXGA) 123PPI |
| mpangilio | RGB Vertical Stripe |
| eneo amilifu(mm) | 262.565 × 164.16 (H×V) |
| muhtasari(mm) | 278.46 × 193.26 × 3.4 (H×V×D) |
| eneo la bezel(mm) | - |
| matibabu | Hard coating |
| mwangaza | 350 cd/m² (Typ.) |
| uwiano wa utofautishaji | 900 : 1 (Typ.) (TM) |
| angle ya kutazama | 80/80/80/80 (Typ.)(CR≥10) |
| majibu | 30 (Typ.)(Tr+Td); 45 (Typ.)(G to G) ms |
| mtazamo mzuri | Symmetry |
| hali ya kazi | ADS, Normally Black, Transmissive |
| kina cha rangi | 16.7M 50% NTSC |
| backlight | WLED , No Driver |
| umbo la muhtasari | - |
| kutumika kwa | Laptop |
| kiwango cha upya | 60Hz |
| skrini ya kugusa | Without |
| aina ya ishara | eDP (1 Lane) , eDP1.2 , HBR1 (2.7G/lane) , 30 pins Connector |
| usambazaji wa voltage | 3.3V (Typ.) |
| max. ukadiriaji | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
