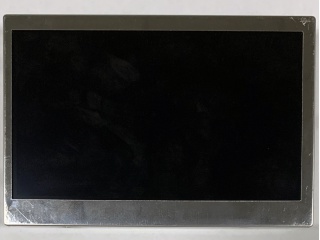

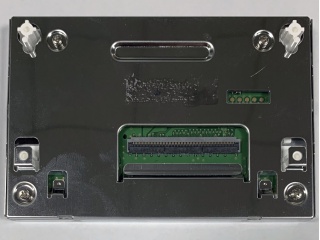

| Nambari ya Sehemu | TX11D201VM0BAA |
| Chapa | KOE |
| Ukubwa | 4.2 |
| Maombi | Automotive Display |
| Azimio | 480×272 |
| Muundo | a-Si TFT-LCD, LCM |
| Mwangaza | |
| CR | 1500:1 |
| Rangi | 16.7M |
| Mwangaza nyuma | WLED |
| Kiolesura | Parallel |
| chapa | KOE |
| mfano | TX11D201VM0BAA |
| ukubwa wa diagonal | 4.2 inch |
| aina | a-Si TFT-LCD, LCM |
| muundo wa pixel | 480(RGB)×272 [WQVGA] 131PPI |
| usanidi | RGB Vertical Stripe |
| eneo la kazi | 92.88(H)×52.632(V) mm |
| muhtasari dim. | 102.5(H)×69(V) ×15.5(D) mm |
| eneo la bezel | 95.28(H)×55.07(V) mm |
| matibabu | Antiglare, Hard coating (2H) |
| mwangaza | 750 cd/m² (Typ.) |
| uwiano wa utofautishaji | 1500:1 (Typ.) (TM) |
| tazama mwelekeo | Symmetry |
| wakati wa majibu | 25 (Typ.)(Tr+Td) |
| angle ya kutazama | 85/85/85/85 (Typ.)(CR≥10) |
| hali ya uendeshaji | IPS, Normally Black, Transmissive |
| rangi ya msaada | 16.7M 65% NTSC |
| chanzo cha mwanga | WLED [6S1P] , 50K hours , With LED Driver |
| uzito | 97.0g (Typ.) |
| iliyoundwa kwa ajili ya | Automotive Display |
| kiwango cha fremu | 60Hz |
| jopo la kugusa | Without |
| aina ya kiolesura | Parallel RGB (1 ch, 8-bit) , 68 pins Connector |
| usambazaji wa nguvu | 3.3V (Typ.) |
| mazingira | Operating Temperature: -40 ~ 85 °C ; Storage Temperature: -40 ~ 95 °C ; Vibration Level: 3.0G (29.4 m/s²) |
