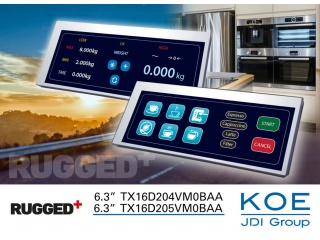

| Nambari ya Sehemu | TX16D204VM0BAA |
| Chapa | KOE |
| Ukubwa | 6.3 |
| Maombi | Industrial |
| Azimio | 800×280 |
| Muundo | a-Si TFT-LCD , LCM |
| Mwangaza | |
| CR | 1000:1 |
| Rangi | 262K |
| Mwangaza nyuma | 3S3P |
| Kiolesura | CMOS |
| chapa ya paneli | KOE |
| saizi ya paneli | 6.3" |
| azimio | 800(RGB)×280, 135PPI |
| eneo la maonyesho | 150(W)×52.5(H) mm |
| saizi ya muhtasari | 167(W)×69(H) ×9.5(D) mm |
| mwangaza | 500 cd/m² (Typ.) |
| angle ya kutazama | 85/85/85/85 (Typ.)(CR≥10) |
| mwonekano bora zaidi | Symmetry |
| kuonyesha rangi | 262K 52% NTSC |
| masafa | 60Hz |
| uzito wa paneli | 107g (Typ.) |
| kiolesura cha ishara | CMOS (1 ch, 6-bit) , 50 pins FPC |
| voltage ya pembejeo | 3.3V (Typ.) |
| mazingira | Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -40 ~ 90 °C ; Vibration Level: 5.0G (49.0 m/s²) |
| mfano wa paneli | TX16D204VM0BAA |
| aina ya paneli | a-Si TFT-LCD , LCM |
| muundo wa pixel | RGB Vertical Stripe |
| ufunguzi wa bezel | 153(W)×55.5(H) mm |
| uso | - |
| uwiano wa utofautishaji | 1000:1 (Typ.) (TM) |
| hali ya kuonyesha | IPS, Normally Black, Transmissive |
| wakati wa majibu | 40 (Typ.)(Tr+Td) |
| aina ya taa | 3S3P WLED , 50K hours , Without Driver |
| skrini ya kugusa | Without |
| maombi | Industrial |
