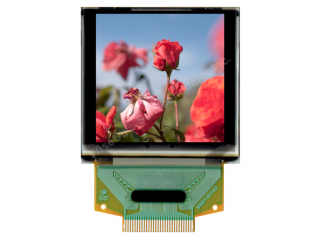

| Nambari ya Sehemu | UG-2828GDEDF15 |
| Chapa | Univision |
| Ukubwa | 1.5 |
| Maombi | Mobile Phone Handhel |
| Azimio | 128×128 |
| Muundo | PM-OLED, OLED |
| Mwangaza | |
| CR | 2000:1 |
| Rangi | 262K |
| Mwangaza nyuma | self |
| Kiolesura | 8-bit |
| chapa | Univision |
| mfano | UG-2828GDEDF15 |
| ukubwa wa diagonal | 1.5 inch |
| aina | PM-OLED, OLED |
| muundo wa pixel | 128(RGB)×128 121PPI |
| usanidi | RGB Vertical Stripe |
| eneo la kazi | 26.855(H)×26.864(V) mm |
| muhtasari dim. | 33.8(H)×34(V) ×1.7(D) mm |
| eneo la bezel | 28.855(H)×28.864(V) mm |
| matibabu | - |
| mwangaza | 90 cd/m² (Typ.) |
| uwiano wa utofautishaji | 2000:1 (Typ.) (TM) |
| tazama mwelekeo | Symmetry |
| wakati wa majibu | - |
| angle ya kutazama | 80/80/80/80 (Min.) |
| hali ya uendeshaji | - |
| rangi ya msaada | 262K |
| chanzo cha mwanga | self , 20K hours |
| uzito | 3.80g (Typ.) |
| iliyoundwa kwa ajili ya | Mobile Phone Handheld & PDA |
| kiwango cha fremu | - |
| jopo la kugusa | Without |
| maelezo ya d-ic | COF Built-in SSD1351 |
| aina ya kiolesura | 8-bit 6800/8080 parallel, 3/4-wire SPI , 30 pins FPC |
| usambazaji wa nguvu | 2.8/2.5/1.8/13V (Typ.)(VCI/VDD/VDDIO/VCC) |
| mazingira | Operating Temperature: -30 ~ 70 °C ; Storage Temperature: -40 ~ 80 °C |
