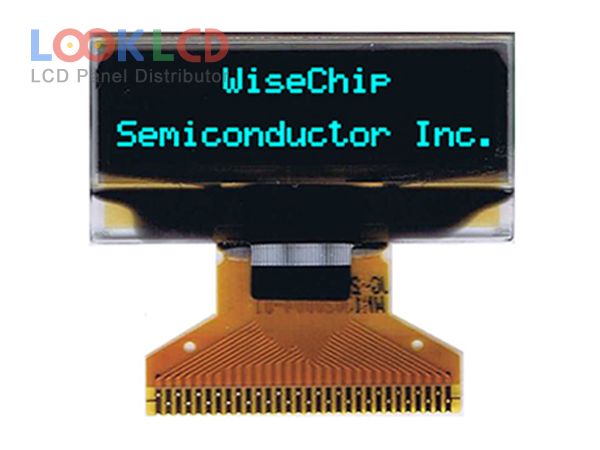

| Nambari ya Sehemu | UG-2832TLBGG01 |
| Chapa | WiseChip |
| Ukubwa | 1.0 |
| Maombi | IA |
| Azimio | 128×32 |
| Muundo | OLED |
| Mwangaza | 100 |
| CR | 10000:1 |
| Rangi | Mono(Blue) |
| Mwangaza nyuma | self |
| Kiolesura | CPU/SPI/I²C |
| chapa ya paneli | WiseChip |
| mfano wa paneli | UG-2832TLBGG01 |
| aina ya paneli | PM-OLED , OLED |
| saizi ya paneli | 1.0 inch |
| azimio | 128×32 |
| eneo la kazi | 25.58×6.38 mm |
| muhtasari | 29.8×14.5×1.4 mm |
| uso | |
| mwangaza | 100 cd/m² (Typ.) |
| uwiano wa utofautishaji | 10000 : 1 (Typ.) |
| kuonyesha rangi | Mono(Blue) |
| angle ya kutazama | |
| dereva ic | Built-in SSD1306 |
| kiolesura cha ishara | 8-bit 6800/8080 parallel, 3/4-wire SPI, I²C, 30 pins |
| voltage ya pembejeo | 2.8/7.25V (Typ.)(VDD/VCC) |
| rohs: | |
| maombi | IA |
