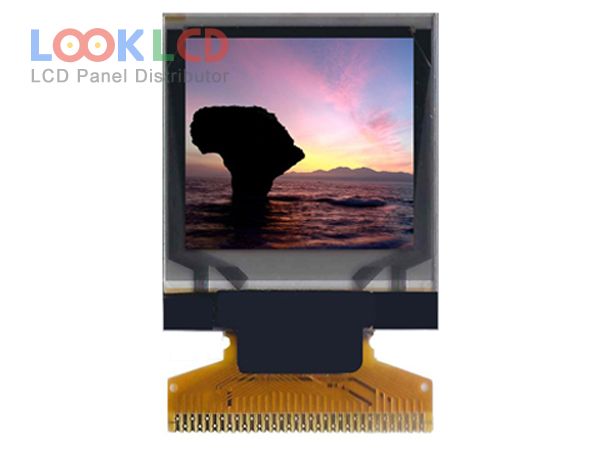

| Nambari ya Sehemu | UG-9696TDDCG02 |
| Chapa | WiseChip |
| Ukubwa | 1.1 |
| Maombi | IA |
| Azimio | 96×96 |
| Muundo | OLED |
| Mwangaza | 100 |
| CR | 10000:1 |
| Rangi | 65K |
| Mwangaza nyuma | self |
| Kiolesura | CPU/SPI |
| chapa ya paneli | WiseChip |
| mfano wa paneli | UG-9696TDDCG02 |
| aina ya paneli | PM-OLED , OLED |
| saizi ya paneli | 1.1 inch |
| azimio | 96(RGB)×96 |
| eneo la kazi | 19.852×19.852 mm |
| muhtasari | 25.9×30.1×1.4 mm |
| uso | |
| mwangaza | 100 cd/m² (Typ.) |
| uwiano wa utofautishaji | 10000 : 1 (Typ.) |
| kuonyesha rangi | 65K |
| angle ya kutazama | |
| dereva ic | COG Built-in SEPS114A |
| kiolesura cha ishara | 8-bit 6800/8080 parallel, 4-wire SPI, 34 pins |
| voltage ya pembejeo | 2.8/2.8/12.0V (Typ.)(VDD/VDDIO/VCC) |
| rohs: | |
| maombi | IA |
