Innolux V420H2-LS2 Rev.C7 hifadhidata, vipimo, hisa, programu www.looklcd-mk.com
LookLCD LookLCD

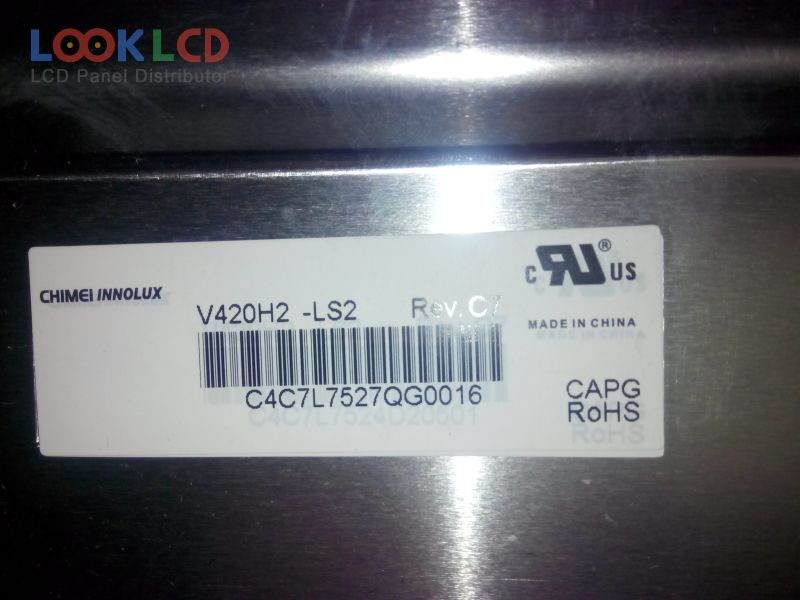

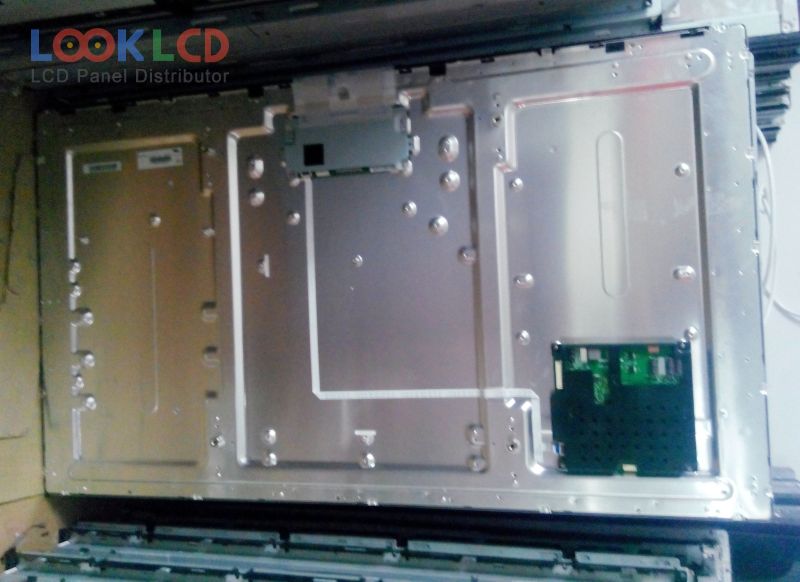

V420H2-LS2 Rev.C7

V420H2-LS2 Rev.C7
V420H2-LS2 Rev.C7
V420H2-LS2 Rev.C7
V420H2-LS2 Rev.C7 thumb V420H2-LS2 Rev.C7 thumb V420H2-LS2 Rev.C7 thumb
Chapa
Innolux
Ukubwa
42
Maombi
LCTV
Azimio
1920×1080
Muundo
LCM
Mwangaza
370
CR
5000:1
Rangi
16.7M
Mwangaza nyuma
WLED
Kiolesura
LVDS
In Stock
15342
Vipimo

Nambari ya Sehemu V420H2-LS2 Rev.C7
ChapaInnolux
Ukubwa42
MaombiLCTV
Azimio1920×1080
MuundoLCM
Mwangaza370
CR5000:1
Rangi16.7M
Mwangaza nyumaWLED
KiolesuraLVDS
chapa ya paneliCHIMEI INNOLUX
mfano wa paneliV420H2-LS2 Rev.C7
aina ya paneli a-Si TFT-LCD , LCM
saizi ya paneli42 inch
azimio1920(RGB)×1080 , FHD
hali ya kuonyeshaSuper MVA, Normally Black, Transmissive
eneo la kazi930.24×523.26 mm
muhtasari968.4×564×27.7 mm
usoAntiglare (Haze 11%), Hard coating (3H)
mwangaza370 cd/m² (Typ.)
uwiano wa utofautishaji5000:1 (Typ.)
kuonyesha rangi16.7M (8-bit), CIE193172%
wakati wa majibu6 (Typ.)(G to G)
angle ya kutazama88/88/88/88 (Typ.)(CR≥20)(L/R/U/D)
masafa120Hz (60Hz Input)
aina ya taaWLEDEmbedded (LED Driver)
kiolesura cha isharaLVDS (2 ch, 8-bit), 61 pins
voltage ya pembejeo12.0V (Typ.)
maombiLCTV
Mfano wa Familia
LC420EUF-SCA1 LG Display 42 1920×1080
LC420WUF-SBN1 LG Display 42 1920×1080
T420HW09 V1 AUO 42 1920×1080
V420H2-L01 Innolux 42 1920×1080
V420H2-L02 Innolux 42 1920×1080
V420H2-L05 Innolux 42 1920×1080
V420H2-LE3 Innolux 42 1920×1080
V420H2-LN1 Innolux 42 1920×1080
V420H2-LS1 Innolux 42 1920×1080
V420H2-LS2 Rev.C7 Innolux 42 1920×1080
