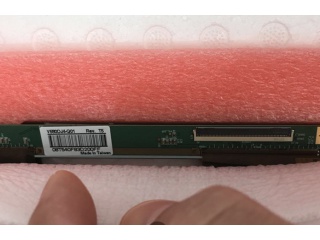

| Nambari ya Sehemu | V580DJ4-Q01 |
| Chapa | Innolux |
| Ukubwa | 58 |
| Maombi | TV Sets |
| Azimio | 3840×2160 |
| Muundo | a-Si TFT-LCD , CELL |
| Mwangaza | |
| CR | 5000:1 |
| Rangi | 1.07B |
| Mwangaza nyuma | No |
| Kiolesura | V-by-One |
| chapa ya paneli | Innolux |
| saizi ya paneli | 58" |
| azimio | 3840(RGB)×2160, UHD, 76PPI |
| eneo la maonyesho | 1270.08(W)×721.44(H) mm |
| saizi ya muhtasari | 1283.38(W)×734.69(H) ×1.32(D) mm |
| mwangaza | 0 cd/m² |
| angle ya kutazama | 89/89/89/89 (Typ.)(CR≥10) |
| mwonekano bora zaidi | Symmetry |
| kioo kina | - |
| kuonyesha rangi | 1.07B 71% NTSC |
| masafa | 60Hz |
| dereva ic | COF Built-in 12 source chips |
| uzito wa paneli | 2.80Kgs (Typ.) |
| kiolesura cha ishara | V-by-One 8 lane , 51 pins Connector |
| voltage ya pembejeo | 12.0V (Typ.) |
| mazingira | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| mfano wa paneli | V580DJ4-Q01 |
| aina ya paneli | a-Si TFT-LCD , CELL |
| muundo wa pixel | RGB Vertical Stripe |
| ufunguzi wa bezel | - |
| uso | Hard coating (3H), Reflection 1.8% (Typ.) |
| uwiano wa utofautishaji | 5000:1 (Typ.) (TM) |
| hali ya kuonyesha | Super MVA, Normally Black, Transmissive |
| wakati wa majibu | 9.5 (Typ.)(G to G) |
| uhamishaji | 5.8% (Typ.)(with Polarizer) |
| aina ya taa | No B/L |
| skrini ya kugusa | Without |
| maombi | TV Sets |
