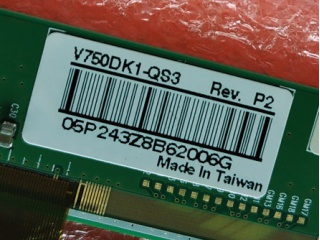

| Nambari ya Sehemu | V750DK1-QS3 Rev.P2 |
| Chapa | Innolux |
| Ukubwa | 75 |
| Maombi | TV Sets |
| Azimio | 3840×2160 |
| Muundo | a-Si TFT-LCD , CELL |
| Mwangaza | |
| CR | 5000:1 |
| Rangi | 1.07B |
| Mwangaza nyuma | No |
| Kiolesura | V-by-One |
| chapa | Innolux |
| ukubwa wa diagonal | 75 inch |
| muundo wa pixel | 3840(RGB)×2160 [UHD] 59PPI |
| eneo la kazi | 1650.24(H)×928.26(V) mm |
| eneo la bezel | - |
| mwangaza | 0 cd/m² |
| tazama mwelekeo | Symmetry |
| angle ya kutazama | 88/88/88/88 (Typ.)(CR≥10) |
| unene wa sahani | 0.50+0.50 mm |
| rangi ya msaada | 1.07B 71% NTSC |
| uzito | 4.87±0.25Kgs (Typ.) |
| kiwango cha fremu | 120Hz |
| maelezo ya d-ic | COF Built-in 24 source + 16 gate chips |
| aina ya kiolesura | V-by-One 8 lane , 56 pins Connector |
| usambazaji wa nguvu | 12.0V (Typ.) |
| mazingira | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| mfano | V750DK1-QS3 Rev.P2 |
| aina | a-Si TFT-LCD , CELL |
| usanidi | RGB Vertical Stripe |
| muhtasari dim. | 1662.24(H)×941.96(V) ×1.32(D) mm |
| matibabu | Clear, Hard coating (3H), Reflection 1.8% (Typ.) |
| uwiano wa utofautishaji | 5000:1 (Typ.) (TM) |
| wakati wa majibu | 6.5 (Typ.)(G to G) |
| hali ya uendeshaji | Super MVA, Normally Black, Transmissive |
| uhamishaji | 5.0% (Typ.)(with Polarizer) |
| chanzo cha mwanga | No B/L |
| iliyoundwa kwa ajili ya | TV Sets |
| jopo la kugusa | Without |
| LTA750FF01 | Samsung | 75 | 3840×2160 |
| LTA750FJ01 | Samsung | 75 | 3840×2160 |
| LTA750HQ01 | Samsung | 75 | 1920×1080 |
| LTI750HF01 | Samsung | 75 | 1920×1080 |
| T750QVF01.0 | AUO | 75 | 3840×2160 |
| V750DK1-KS5 Rev.F8 | Innolux | 75 | 3840×2160 |
