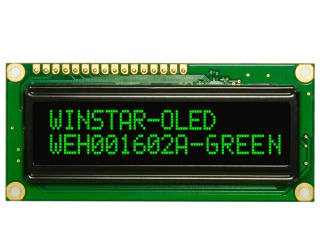

| Nambari ya Sehemu | WEH001602AG |
| Chapa | Winstar |
| Ukubwa | 2.3 |
| Maombi | Instruments & Meters |
| Azimio | 5×8 |
| Muundo | PM-OLED , OLED |
| Mwangaza | |
| CR | 2000:1 |
| Rangi | Mono(Green) |
| Mwangaza nyuma | self |
| Kiolesura | CPU/SPI |
| chapa | Winstar |
| ukubwa wa diagonal | 2.3 inch |
| muundo wa char | 5×8 dots |
| saizi ya fonti | 2.95×5.55 mm |
| eneo la kazi | 56.95(H)×11.85(V) mm |
| eneo la bezel | 66(H)×16(V) mm |
| mwangaza | - |
| tazama mwelekeo | Symmetry |
| angle ya kutazama | - |
| rangi ya msaada | Mono(Green) |
| uzito | - |
| kiwango cha fremu | - |
| maelezo ya d-ic | COB Built-in WS0010 |
| aina ya kiolesura | CPU/SPI , 16 pins Pad |
| usambazaji wa nguvu | 5.0V (Typ.) |
| mazingira | Operating Temperature: -40 ~ 80 °C - |
| mfano | WEH001602AG |
| aina | PM-OLED , OLED |
| sauti ya fonti | 3.6×6.3 mm |
| muhtasari dim. | 80(H)×36(V) ×10(D) mm |
| matibabu | - |
| uwiano wa utofautishaji | 2000:1 (Typ.) (TM) |
| wakati wa majibu | 0.01 (Typ.) |
| hali ya uendeshaji | - |
| chanzo cha mwanga | self |
| iliyoundwa kwa ajili ya | Instruments & Meters |
| jopo la kugusa | Without |
