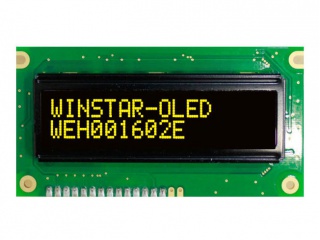

| Nambari ya Sehemu | WEH001602EL |
| Chapa | Winstar |
| Ukubwa | 2.3 |
| Maombi | Instruments & Me |
| Azimio | 16×27 |
| Muundo | PM-OLED, OLED |
| Mwangaza | |
| CR | |
| Rangi | Mono(Yellow) |
| Mwangaza nyuma | self |
| Kiolesura | CPU/SPI |
| chapa ya paneli | Winstar |
| mfano wa paneli | WEH001602EL |
| saizi ya paneli | 2.3" |
| aina ya paneli | PM-OLED, OLED |
| umbizo la kuonyesha | 16 characters × 2 lines, 7PPI |
| umbizo la fonti | 5×8 dots |
| saizi ya mhusika | 2.95×5.55(W×H) mm |
| kiwango cha tabia | 3.6×6.3(W×H) mm |
| eneo la maonyesho | 56.95(W)×11.85(H) mm |
| ufunguzi wa bezel | 66(W)×16(H) mm |
| saizi ya muhtasari | 84(W)×44(H) ×10(D) mm |
| uso | - |
| angle ya kutazama | - |
| hali ya kuonyesha | - |
| mwonekano bora zaidi | Symmetry |
| wakati wa majibu | - |
| kuonyesha rangi | Mono(Yellow) |
| aina ya taa | self |
| masafa | - |
| skrini ya kugusa | Without |
| dereva ic | COB Built-in WS0010 |
| uzito wa paneli | - |
| maombi | Instruments & Meters |
| kiolesura cha ishara | CPU/SPI , 16 pins Pad |
| voltage ya pembejeo | 5.0V (Typ.) |
| AL1602B | Other | 2.3 | 16×2 |
| AMC162A | Other | 2.3 | 16×2 |
| AMC162B | Other | 2.3 | 16×2 |
| DMC-16202NY-LY-BJE-BLN | Kyocera | 2.3 | 16×2 |
| LS023B3UY01 | SHARP | 2.3 | 360×400 |
| TM023KDH60 | Tianma | 2.3 | 320×240 |
