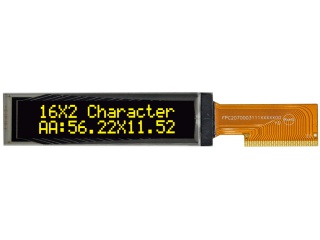

| Nambari ya Sehemu | WEO001602CL |
| Chapa | Winstar |
| Ukubwa | 2.3 |
| Maombi | Instruments & Me |
| Azimio | 16×27 |
| Muundo | PM-OLED, OLED |
| Mwangaza | |
| CR | 2000:1 |
| Rangi | Mono(Yellow) |
| Mwangaza nyuma | self |
| Kiolesura | 8-bit |
| chapa ya paneli | Winstar |
| mfano wa paneli | WEO001602CL |
| saizi ya paneli | 2.3" |
| aina ya paneli | PM-OLED, OLED |
| umbizo la kuonyesha | 16 characters × 2 lines, 7PPI |
| umbizo la fonti | 5×8 dots |
| saizi ya mhusika | 2.97×5.57(W×H) mm |
| kiwango cha tabia | 3.55×5.95(W×H) mm |
| eneo la maonyesho | 56.22(W)×11.52(H) mm |
| ufunguzi wa bezel | 58.22(W)×13.52(H) mm |
| saizi ya muhtasari | 68.5(W)×17.5(H) ×2.25(D) mm |
| uso | - |
| mwangaza | - |
| uwiano wa utofautishaji | 2000:1 (Typ.) (TM) |
| angle ya kutazama | 88/88/88/88 |
| hali ya kuonyesha | - |
| mwonekano bora zaidi | Symmetry |
| wakati wa majibu | 0.01 (Typ.) |
| kuonyesha rangi | Mono(Yellow) |
| aina ya taa | self |
| masafa | - |
| skrini ya kugusa | Without |
| dereva ic | COG Built-in SSD1311M1Z |
| uzito wa paneli | - |
| maombi | Instruments & Meters |
| kiolesura cha ishara | 8-bit 6800/8080 parallel, 4-wire SPI, I²C , 33 pins FPC |
| voltage ya pembejeo | 3.3/5.0V (Typ.)(VDD) |
