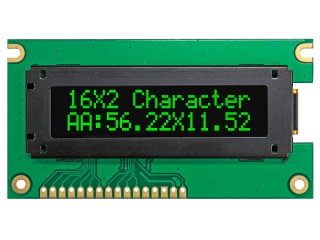

| Nambari ya Sehemu | WEO001602GG |
| Chapa | Winstar |
| Ukubwa | 2.3 |
| Maombi | Instruments & Me |
| Azimio | 16×27 |
| Muundo | PM-OLED, OLED |
| Mwangaza | |
| CR | 2000:1 |
| Rangi | Mono(Green) |
| Mwangaza nyuma | self |
| Kiolesura | 8-bit |
| chapa ya paneli | Winstar |
| mfano wa paneli | WEO001602GG |
| saizi ya paneli | 2.3" |
| aina ya paneli | PM-OLED, OLED |
| umbizo la kuonyesha | 16 characters × 2 lines, 7PPI |
| umbizo la fonti | 5×8 dots |
| saizi ya mhusika | 2.97×5.57(W×H) mm |
| kiwango cha tabia | 3.55×5.95(W×H) mm |
| eneo la maonyesho | 56.22(W)×11.52(H) mm |
| ufunguzi wa bezel | 58.22(W)×13.52(H) mm |
| saizi ya muhtasari | 79(W)×44(H) ×9.67(D) mm |
| uso | - |
| mwangaza | - |
| uwiano wa utofautishaji | 2000:1 (Typ.) (TM) |
| angle ya kutazama | 88/88/88/88 |
| hali ya kuonyesha | - |
| mwonekano bora zaidi | Symmetry |
| wakati wa majibu | 0.01 (Typ.) |
| kuonyesha rangi | Mono(Green) |
| aina ya taa | self |
| masafa | - |
| skrini ya kugusa | Without |
| dereva ic | COGBuilt-in SSD1311M1Z |
| uzito wa paneli | - |
| maombi | Instruments & Meters |
| kiolesura cha ishara | 8-bit 6800/8080 parallel, 4-wire SPI, I²C , 16 pins Pad |
| voltage ya pembejeo | 3.3/5.0V (Typ.)(VDD) |
| AL1602B | Other | 2.3 | 16×2 |
| AMC162A | Other | 2.3 | 16×2 |
| AMC162B | Other | 2.3 | 16×2 |
| DMC-16202NY-LY-BJE-BLN | Kyocera | 2.3 | 16×2 |
| LS023B3UY01 | SHARP | 2.3 | 360×400 |
| TM023KDH60 | Tianma | 2.3 | 320×240 |
