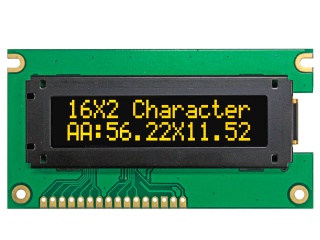

| Nambari ya Sehemu | WEO001602GL |
| Chapa | Winstar |
| Ukubwa | 2.3 |
| Maombi | Instruments & Me |
| Azimio | 5×8 |
| Muundo | PM-OLED, OLED |
| Mwangaza | |
| CR | 2000:1 |
| Rangi | Mono(Yellow) |
| Mwangaza nyuma | self |
| Kiolesura | 8-bit |
| chapa | Winstar |
| mfano | WEO001602GL |
| ukubwa wa diagonal | 2.3 inch |
| aina | PM-OLED, OLED |
| muundo wa char | 5×8 dots |
| saizi ya fonti | 2.97×5.57 mm |
| sauti ya fonti | 3.55×5.95 mm |
| eneo la kazi | 56.22(H)×11.52(V) mm |
| muhtasari dim. | 79(H)×44(V) ×9.67(D) mm |
| eneo la bezel | 58.22(H)×13.52(V) mm |
| matibabu | - |
| mwangaza | - |
| uwiano wa utofautishaji | 2000:1 (Typ.) (TM) |
| tazama mwelekeo | Symmetry |
| wakati wa majibu | 0.01 (Typ.) |
| angle ya kutazama | 88/88/88/88 |
| hali ya uendeshaji | - |
| rangi ya msaada | Mono(Yellow) |
| chanzo cha mwanga | self |
| uzito | - |
| iliyoundwa kwa ajili ya | Instruments & Meters |
| kiwango cha fremu | - |
| jopo la kugusa | Without |
| maelezo ya d-ic | COG Built-in SSD1311M1Z |
| aina ya kiolesura | 8-bit 6800/8080 parallel, 4-wire SPI, I²C , 16 pins Pad |
| usambazaji wa nguvu | 3.3/5.0V (Typ.)(VDD) |
