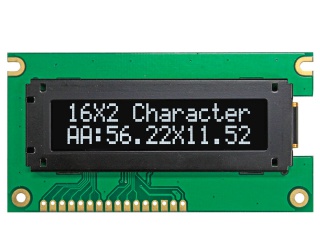

| Nambari ya Sehemu | WEO001602GW |
| Chapa | Winstar |
| Ukubwa | 2.3 |
| Maombi | Instruments & Me |
| Azimio | 5×8 |
| Muundo | OLED , PM-OLED |
| Mwangaza | |
| CR | 2000:1 |
| Rangi | Mono(White) |
| Mwangaza nyuma | self |
| Kiolesura | 8-bit |
| mtengenezaji | Winstar |
| jina la mfano | WEO001602GW |
| ukubwa wa skrini | 2.3 inch |
| aina ya skrini | OLED , PM-OLED |
| nambari ya char | 16 characters × 2 lines 7PPI |
| muundo wa char | 5×8 dots |
| kiwango cha char(mm) | 3.55×5.95 (H×V) |
| saizi ya char (mm) | 2.97×5.57 (H×V) |
| eneo amilifu(mm) | 56.22 × 11.52 (H×V) |
| muhtasari(mm) | 79 × 44 × 9.67 (H×V×D) |
| eneo la bezel(mm) | 58.22 × 13.52 (H×V) |
| matibabu | - |
| mwangaza | - |
| uwiano wa utofautishaji | 2000 : 1 (Typ.) (TM) |
| angle ya kutazama | 88/88/88/88 |
| majibu | 0.01 (Typ.) ms |
| mtazamo mzuri | Symmetry |
| hali ya kazi | - |
| kina cha rangi | Mono(White) |
| backlight | self |
| wingi | - |
| kutumika kwa | Instruments & Meters |
| kiwango cha upya | - |
| skrini ya kugusa | Without |
| orodha ya dereva | Built-in COG SSD1311M1Z |
| aina ya ishara | 8-bit 6800/8080 parallel, 4-wire SPI, I²C , 16 pins Pad |
| usambazaji wa voltage | 3.3/5.0V (Typ.)(VDD) |
