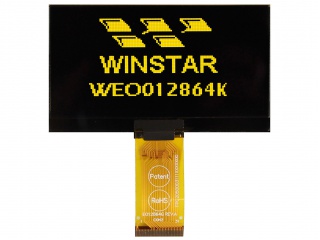

| Nambari ya Sehemu | WEO012864KL |
| Chapa | Winstar |
| Ukubwa | 2.7 |
| Maombi | Handheld & PDA Instr |
| Azimio | 128×64 |
| Muundo | OLED , PM-OLED |
| Mwangaza | |
| CR | |
| Rangi | Mono(Yellow) |
| Mwangaza nyuma | self |
| Kiolesura | 8-bit |
| mtengenezaji | Winstar |
| ukubwa wa skrini | 2.7 inch |
| nambari ya pixel | 128×64 52PPI |
| eneo amilifu(mm) | 61.41 × 30.69 (H×V) |
| eneo la bezel(mm) | 63.41 × 32.69 (H×V) |
| angle ya kutazama | - |
| mtazamo mzuri | Symmetry |
| kina cha rangi | Mono(Yellow) |
| wingi | - |
| kiwango cha upya | - |
| orodha ya dereva | Built-in COG SSD1309ZC |
| aina ya ishara | 8-bit 6800/8080 parallel, 4-wire SPI, I²C , 31 pins FPC |
| usambazaji wa voltage | 3.0V (Typ.) |
| jina la mfano | WEO012864KL |
| aina ya skrini | OLED , PM-OLED |
| mpangilio | Rectangle |
| muhtasari(mm) | 73 × 41.86 × 2.15 (H×V×D) |
| matibabu | - |
| majibu | - |
| hali ya kazi | - |
| backlight | self |
| kutumika kwa | Handheld & PDA Instruments & Meters |
| skrini ya kugusa | Without |
| A027DN01 VQ | AUO | 2.7 | 320×240 |
| A027DN03 V2 | AUO | 2.7 | 320×240 |
| A027DN03 V8 | AUO | 2.7 | 320×240 |
| A027DN04 V4 | AUO | 2.7 | 320×240 |
| LS027B4DH01 | SHARP | 2.7 | 400×240 |
| LS027T3DG01 | SHARP | 2.7 | 320×240 |
| OEL9M0065-Y-E | Other | 2.7 | 256×64 |
| RGS27128064YW000 | RiTdisplay | 2.7 | 128×64 |
| TM027CDH12 | Tianma | 2.7 | 320×240 |
| UG-2864ASYDT01 | WiseChip | 2.7 | 128×64 |
