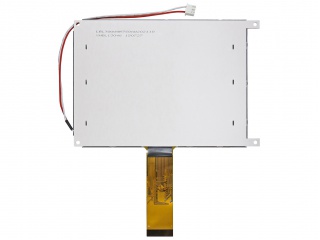

| Nambari ya Sehemu | WF57STIACDNN0 |
| Chapa | Winstar |
| Ukubwa | 5.7 |
| Maombi | Industrial |
| Azimio | 320×240 |
| Muundo | a-Si TFT-LCD , LCM |
| Mwangaza | |
| CR | 800:1 |
| Rangi | Grayscale |
| Mwangaza nyuma | WLED |
| Kiolesura | 8/16-bit |
| chapa ya paneli | Winstar |
| saizi ya paneli | 5.7" |
| azimio | 320×240, QVGA, 70PPI |
| eneo la maonyesho | 115.2(W)×86.4(H) mm |
| saizi ya muhtasari | 160(W)×109(H) ×7.5(D) mm |
| mwangaza | 1000 cd/m² (Typ.) |
| angle ya kutazama | - |
| mwonekano bora zaidi | 12 o'clock |
| kuonyesha rangi | Grayscale |
| masafa | - |
| uzito wa paneli | - |
| kiolesura cha ishara | 8/16-bit 6800/8080 parallel, 3/4-wire SPI , 22 pins FPC |
| voltage ya pembejeo | 3.3V (Typ.) |
| mazingira | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
| mfano wa paneli | WF57STIACDNN0 |
| aina ya paneli | a-Si TFT-LCD , LCM |
| muundo wa pixel | Rectangle |
| ufunguzi wa bezel | 122.0(W)×92.0(H) mm |
| uso | Glare (Haze 0%) |
| uwiano wa utofautishaji | 800:1 (Typ.) (TM) |
| hali ya kuonyesha | TN, Normally White, Transmissive |
| wakati wa majibu | - |
| aina ya taa | WLED , Without Driver |
| skrini ya kugusa | Without |
| maombi | Industrial |
| AM-640480G2TNQW-T01H-A | AMPIRE | 5.7 | 640×480 |
| G057VGE-T01 | Innolux | 5.7 | 640×480 |
| G057VN01 V0 | AUO | 5.7 | 640×480 |
| KG057QV1CA-G04 | Kyocera | 5.7 | 320×240 |
| KG057QV1DB-G00 | Kyocera | 5.7 | 320×240 |
| LTA057A341F | TOSHIBA | 5.7 | 320×240 |
| LTA057A344F | TOSHIBA | 5.7 | 320×240 |
| NL6448BC18-01 | NLT | 5.7 | 640×480 |
| SP14Q002-A1 | KOE | 5.7 | 320×240 |
| TX14D12VM1CBA | KOE | 5.7 | 320×240 |
