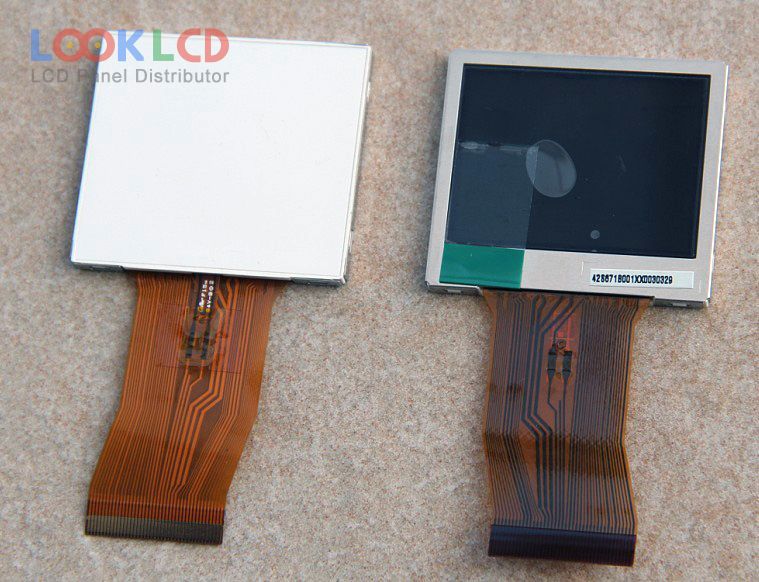

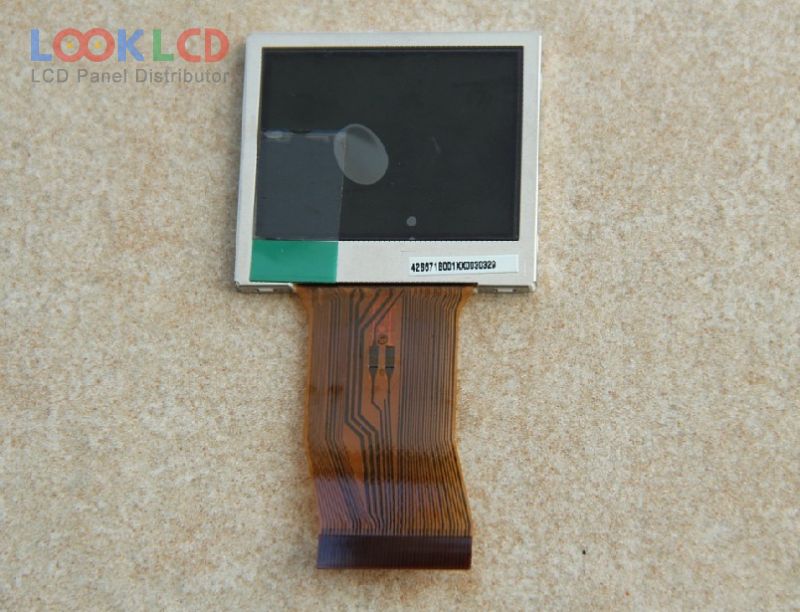

| Nambari ya Sehemu | A017CN01 V1 |
| Chapa | AUO |
| Ukubwa | 1.7 |
| Maombi | DSC |
| Azimio | 480×240 |
| Muundo | LCM |
| Mwangaza | 280 |
| CR | 300:1 |
| Rangi | |
| Mwangaza nyuma | WLED |
| Kiolesura | Serial RGB |
| chapa ya paneli | AUO |
| mfano wa paneli | A017CN01 V1 |
| aina ya paneli | a-Si TFT-LCD , LCM |
| saizi ya paneli | 1.7 inch |
| azimio | 480×240 |
| hali ya kuonyesha | TN, Normally White, Transmissive |
| eneo la kazi | 34.08×25.56 mm |
| muhtasari | 41.58×37.26 mm |
| uso | Hard coating (3H) |
| mwangaza | 280 cd/m² (Typ.) |
| uwiano wa utofautishaji | 300:1 (Typ.) |
| kuonyesha rangi | |
| wakati wa majibu | 25/30 (Typ.)(Tr/Td) |
| angle ya kutazama | 40/40/10/30 (Typ.)(CR≥10)(L/R/U/D) |
| aina ya taa | 3S1PWLEDWithout Driver |
| kiolesura cha ishara | Serial RGB (8-bit) + SPI, CCIR656, 40 pins |
| voltage ya pembejeo | 3.0/3.3/0.1V (Typ.)(VCC/AVDD/VCDC) |
| maombi | DSC |
| A015AN03 V0 | AUO | 1.46 | 280×220 |
| A017CN01 V1 | AUO | 1.7 | 480×240 |
| A030DN01 V0 | AUO | 3.0 | 320×240 |
| A035VL01 V6 | AUO | 3.5 | 800×480 |
| LTV350QV-F05 | Samsung | 3.5 | 320×240 |
| LTV350QV-F07 | Samsung | 3.5 | 320×240 |
| PT035TN23 V.1 | Innolux | 3.5 | 320×240 |
| TD020THEG1 | TPO | 2.0 | 640×240 |
| TM027CDH12 | Tianma | 2.7 | 320×240 |
| TM035KDH16-09 | Tianma | 3.5 | 320×240 |
