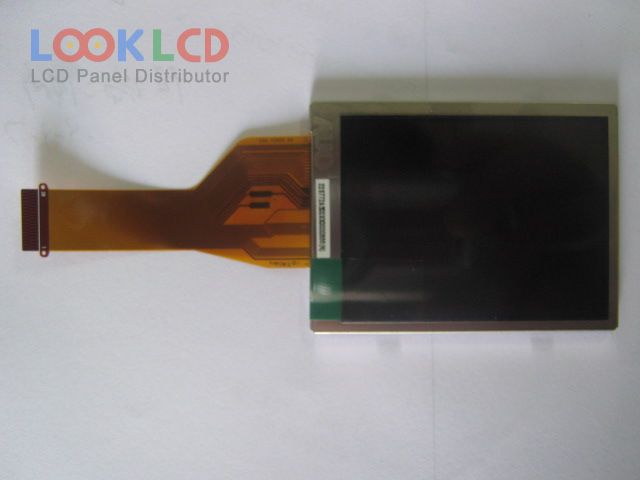

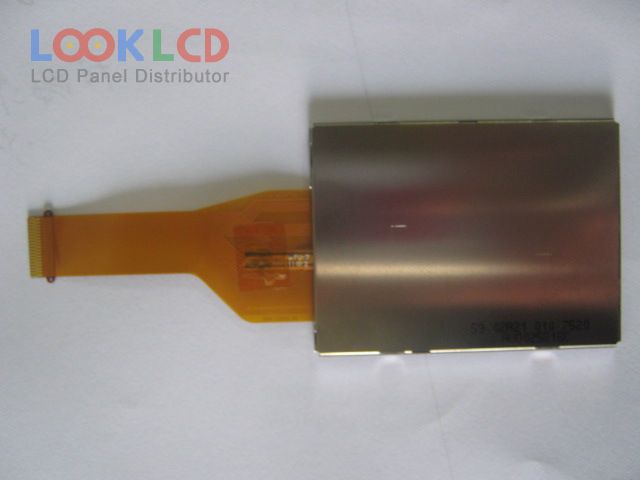

| Nambari ya Sehemu | A025DL02 V5 |
| Chapa | AUO |
| Ukubwa | 2.5 |
| Maombi | DSC |
| Azimio | 320×240 |
| Muundo | LCM |
| Mwangaza | 400 |
| CR | 300:1 |
| Rangi | 16.7M |
| Mwangaza nyuma | WLED |
| Kiolesura | Serial RGB |
| chapa ya paneli | AUO |
| mfano wa paneli | A025DL02 V5 |
| aina ya paneli | LTPS TFT-LCD , LCM |
| saizi ya paneli | 2.5 inch |
| azimio | 320(RGB)×240 , QVGA |
| hali ya kuonyesha | TN, Normally White, Transmissive |
| eneo la kazi | 50.4×37.8 mm |
| muhtasari | 60.73×45.07 mm |
| uso | Hard coating (3H) |
| mwangaza | 400 cd/m² (Typ.) |
| uwiano wa utofautishaji | 300:1 (Min.) |
| kuonyesha rangi | 16.7M (8-bit) |
| wakati wa majibu | 15/20 (Typ.)(Tr/Td) |
| angle ya kutazama | 55/55/45/70 (Typ.)(CR≥10)(L/R/U/D) |
| aina ya taa | 3S1PWLED |
| kiolesura cha ishara | Serial RGB (8-bit) + SPI, CCIR656, 39 pins |
| voltage ya pembejeo | 3.3/3.3 (Typ.)(VDC/VDCI) |
| rohs: | |
| maombi | DSC |
| 990000006 | TPO | 3.0 | 320×240 |
| A015AN04 V6 | AUO | 1.5 | 280×220 |
| A027DN01 VB | AUO | 2.7 | 320×240 |
| A030DN01 V0 | AUO | 3.0 | 320×240 |
| A035VL01 V6 | AUO | 3.5 | 800×480 |
| TD020THEG1 | TPO | 2.0 | 640×240 |
| TD024THEB5 | TPO | 2.4 | 480×240 |
| TD025THEE6 | TPO | 2.5 | 640×240 |
| TD030WHEA1 | TPO | 3.0 | 320×240 |
| TM035KDH04 | Tianma | 3.5 | 320×240 |
