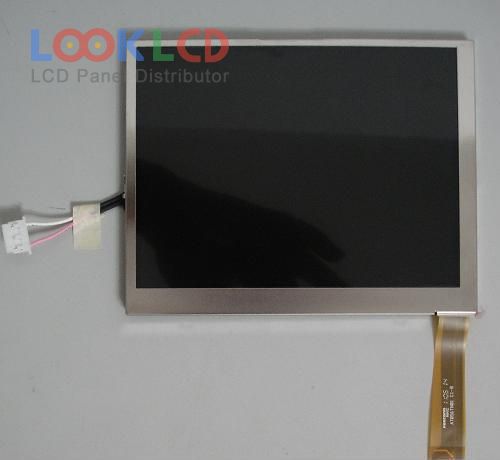

| Nambari ya Sehemu | A056DN01 V2 |
| Chapa | AUO |
| Ukubwa | 5.6 |
| Maombi | VDP |
| Azimio | 320×234 |
| Muundo | LCM |
| Mwangaza | 500 |
| CR | 250:1 |
| Rangi | Full color |
| Mwangaza nyuma | CCFL |
| Kiolesura | Analog |
| chapa ya paneli | AUO |
| mfano wa paneli | A056DN01 V2 |
| aina ya paneli | a-Si TFT-LCD , LCM |
| saizi ya paneli | 5.6 inch |
| azimio | 320(RGB)×234 |
| hali ya kuonyesha | TN, Normally White, Transmissive |
| eneo la kazi | 113.28×84.708 mm |
| muhtasari | 126.5×100 mm |
| uso | |
| mwangaza | 500 cd/m² (Typ.) |
| uwiano wa utofautishaji | 250:1 (Typ.) |
| kuonyesha rangi | Full color |
| wakati wa majibu | 15/20 (Typ.)(Tr/Td) |
| angle ya kutazama | 50/50/30/50 (Min.)(CR≥10)(L/R/U/D) |
| aina ya taa | 1 pcsCCFLWithout Driver |
| kiolesura cha ishara | TFT Specific Analog RGB, 26 pins |
| voltage ya pembejeo | 5/5/15/-10V (Typ.)(VCC/AVDD/VGH/VGL) |
| maombi | VDP |
| A070FW03 VD | AUO | 7.0 | 480×234 |
| CLAA070WA03 | CPT | 7.0 | 480×234 |
| EE050NA-04A | Innolux | 5.0 | 640×480 |
| HSD050I551-A00 | HannStar | 5.0 | 320×234 |
| LB070W02-TMJ2 | LG Display | 7.0 | 480×234 |
| LQ070T3AG02 | SHARP | 7.0 | 480×234 |
| LQ6AN101 | SHARP | 5.6 | 320×234 |
| LR700BA9005 | Innolux | 7.0 | 480×234 |
| PA050XSH | E Ink | 5.0 | 320×234 |
| PW056XU1 | E Ink | 5.5 | 480×234 |
