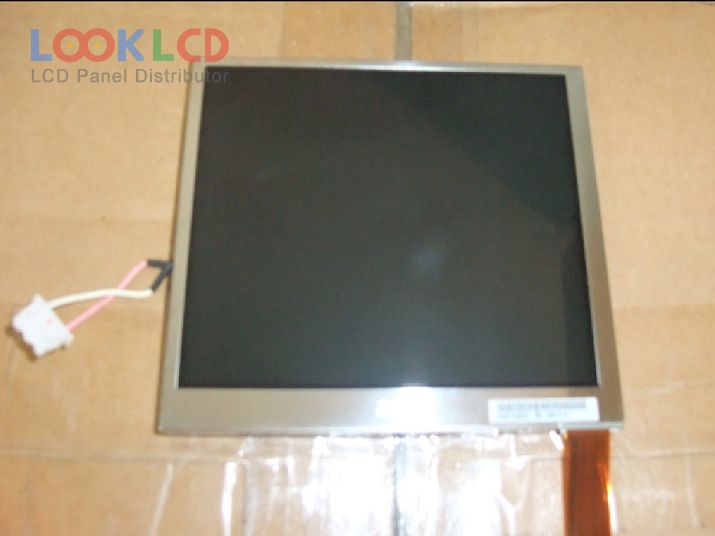

| Nambari ya Sehemu | A056DN01 |
| Chapa | AUO |
| Ukubwa | 5.6 |
| Maombi | VDP |
| Azimio | 320×234 |
| Muundo | LCM |
| Mwangaza | 300 |
| CR | 150:1 |
| Rangi | |
| Mwangaza nyuma | CCFL |
| Kiolesura | Analog |
| chapa ya paneli | AU Optronics |
| mfano wa paneli | A056DN01 1 Compatible model |
| aina ya paneli | a-Si TFT-LCD , LCM |
| saizi ya paneli | 5.6 inch |
| azimio | 320(RGB)×234 |
| hali ya kuonyesha | TN, Normally White, Transmissive |
| eneo la kazi | 113.28×84.708 mm |
| muhtasari | 126.5×100 mm |
| uso | |
| mwangaza | 300 cd/m² (Typ.) |
| uwiano wa utofautishaji | 150:1 (Typ.) |
| kuonyesha rangi | |
| wakati wa majibu | 15/20 (Typ.)(Tr/Td) |
| angle ya kutazama | 45/45/10/30 (Min.)(CR≥10)(L/R/U/D) |
| aina ya taa | 1 pcsCCFLWithout Driver |
| kiolesura cha ishara | TFT Specific Analog RGB, 26 pins |
| voltage ya pembejeo | 5/5/15/-10V (Typ.)(VCC/AVDD/VGH/VGL) |
| maombi | VDP |
| AT050TN22 V.1 | Innolux | 5.0 | 640×480 |
| AT050TN23 V.1 | Innolux | 5.0 | 640×480 |
| DLC0500AIG-2 | Other | 5.0 | 640×480 |
| LB065WQ3-TD02 | LG Display | 6.5 | 400×240 |
| LB070W02-TMJ2 | LG Display | 7.0 | 480×234 |
| LTA065B096D | TOSHIBA | 6.5 | 400×234 |
| PA050XSH | E Ink | 5.0 | 320×234 |
| PW062XS6 | E Ink | 6.2 | 480×234 |
| PW070DS1T2 | E Ink | 7.0 | 480×234 |
| TM056KDH01 | Tianma | 5.6 | 320×234 |
