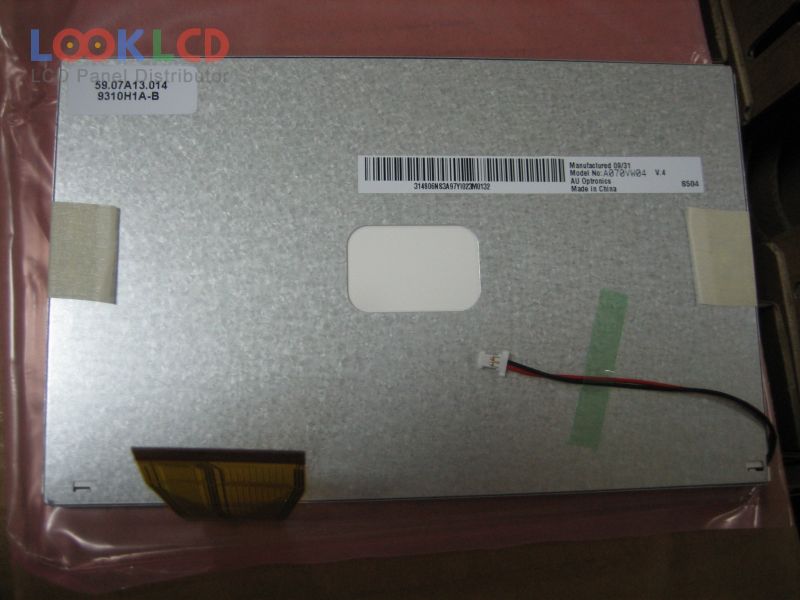

| Nambari ya Sehemu | A070VW04 V4 |
| Chapa | AUO |
| Ukubwa | 7.0 |
| Maombi | MP4 |
| Azimio | 800×480 |
| Muundo | LCM |
| Mwangaza | 250 |
| CR | 300:1 |
| Rangi | 16.7M |
| Mwangaza nyuma | WLED |
| Kiolesura | TTL |
| chapa ya paneli | AUO |
| mfano wa paneli | A070VW04 V4 |
| aina ya paneli | a-Si TFT-LCD , LCM |
| saizi ya paneli | 7.0 inch |
| azimio | 800(RGB)×480 , WVGA |
| hali ya kuonyesha | TN, Normally White, Transmissive |
| eneo la kazi | 152.4×91.44 mm |
| muhtasari | 164×103×5.4 mm |
| uso | Antiglare |
| mwangaza | 250 cd/m² (Typ.) |
| uwiano wa utofautishaji | 300:1 (Typ.) |
| kuonyesha rangi | 16.7M (8-bit) |
| wakati wa majibu | 12/18 (Typ.)(Tr/Td) |
| angle ya kutazama | 65/65/50/65 (Typ.)(CR≥10)(L/R/U/D) |
| aina ya taa | 3S7PWLEDWithout Driver |
| kiolesura cha ishara | Parallel RGB (1 ch, 8-bit) + SPI, 60 pins |
| voltage ya pembejeo | 3.3/11/18/-7V (Typ.)(VDD/AVDD/VGH/VGL) |
| maombi | MP4 |
