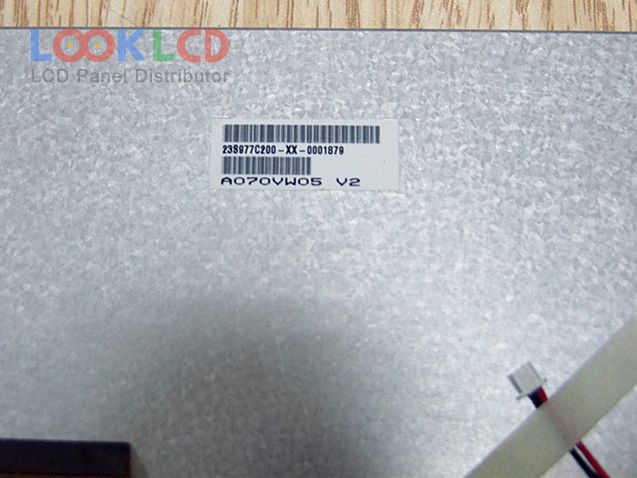

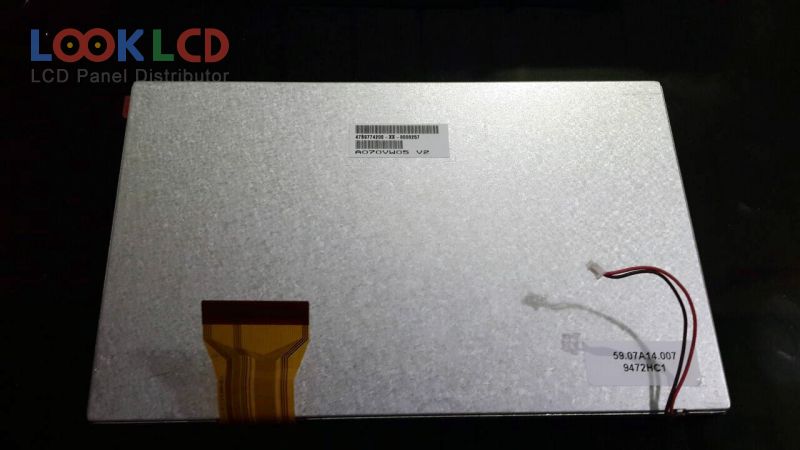

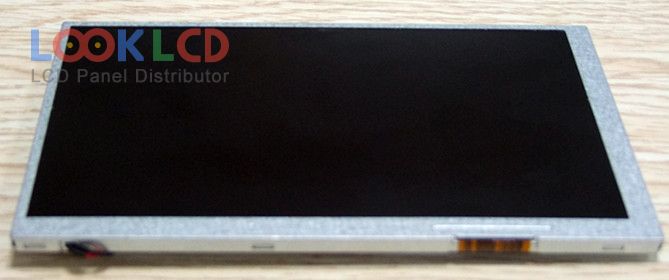

| Nambari ya Sehemu | A070VW05 V2 |
| Chapa | AUO |
| Ukubwa | 7.0 |
| Maombi | CNS |
| Azimio | 800×480 |
| Muundo | LCM |
| Mwangaza | 375 |
| CR | 500:1 |
| Rangi | 16.7M |
| Mwangaza nyuma | WLED |
| Kiolesura | TTL |
| chapa ya paneli | AUO |
| mfano wa paneli | A070VW05 V2 |
| aina ya paneli | a-Si TFT-LCD , LCM |
| saizi ya paneli | 7.0 inch |
| azimio | 800(RGB)×480 , WVGA |
| hali ya kuonyesha | TN, Normally White, Transmissive |
| eneo la kazi | 152.4×91.44 mm |
| muhtasari | 165×104×5.4 mm |
| uso | Antiglare, Hard coating (3H) |
| mwangaza | 375 cd/m² (Typ.) |
| uwiano wa utofautishaji | 500:1 (Typ.) |
| kuonyesha rangi | 16.7M (8-bit), CIE193150% |
| wakati wa majibu | 12/18 (Typ.)(Tr/Td) |
| angle ya kutazama | 65/65/45/65 (Typ.)(CR≥10)(L/R/U/D) |
| aina ya taa | 3S9PWLEDWithout Driver |
| kiolesura cha ishara | Parallel RGB (1 ch, 8-bit), 50 pins |
| voltage ya pembejeo | 3.3/3.3/11/18/-8V (Typ.)(VDDIO/GVDDIO/AVDD/VGH/VGL) |
| rohs: | |
| maombi | CNS |
