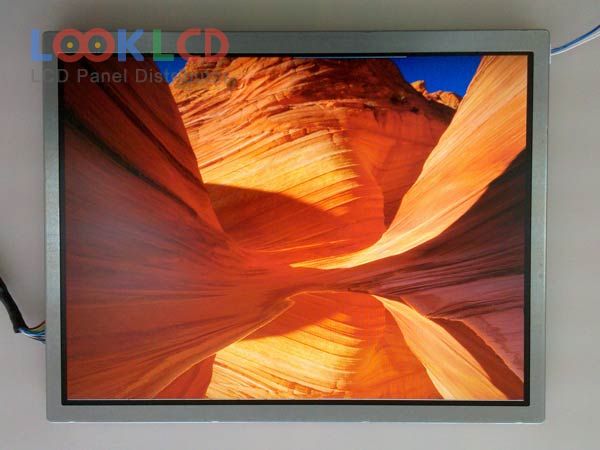

| Nambari ya Sehemu | AA104XD02 |
| Chapa | Mitsubishi |
| Ukubwa | 10.4 |
| Maombi | IA |
| Azimio | 1024×768 |
| Muundo | LCM |
| Mwangaza | 600 |
| CR | 700:1 |
| Rangi | 262K/16.7M |
| Mwangaza nyuma | WLED |
| Kiolesura | LVDS |
| chapa ya paneli | Mitsubishi |
| mfano wa paneli | AA104XD02 1 Compatible model |
| aina ya paneli | a-Si TFT-LCD , LCM |
| saizi ya paneli | 10.4 inch |
| azimio | 1024(RGB)×768 , XGA |
| hali ya kuonyesha | TN, Normally White, Transmissive |
| eneo la kazi | 210.4×157.8 mm |
| muhtasari | 230×180.2×11 mm |
| uso | Antiglare, Hard coating (3H) |
| mwangaza | 600 cd/m² (Typ.) |
| uwiano wa utofautishaji | 700:1 (Typ.) |
| kuonyesha rangi | 262K/16.7M (6-bit / 6-bit + Hi-FRC), CIE193140% |
| wakati wa majibu | 4/12 (Typ.)(Tr/Td) |
| angle ya kutazama | 80/80/65/65 (Typ.)(CR≥10)(L/R/U/D) |
| masafa | 60Hz |
| aina ya taa | 2 stringsWLEDWithout Driver |
| kiolesura cha ishara | LVDS (1 ch, 6/8-bit), 20 pins |
| voltage ya pembejeo | 3.3V (Typ.) |
| maombi | IA |
