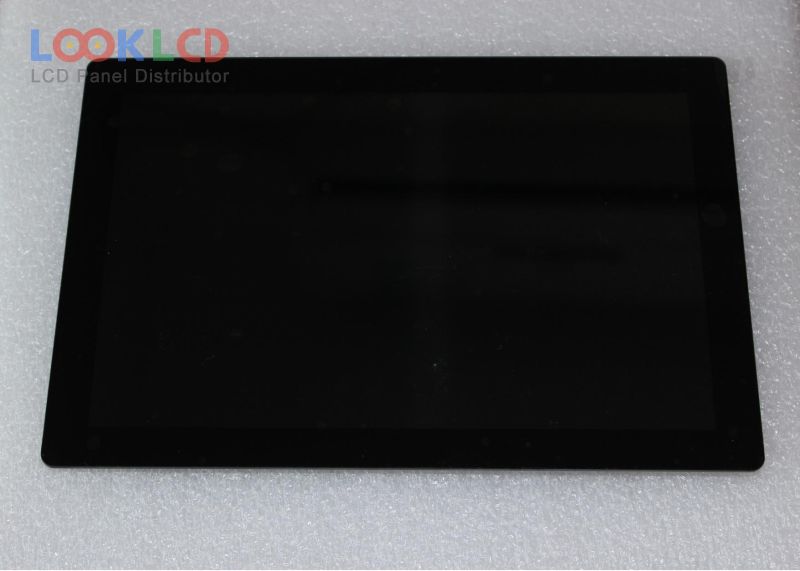

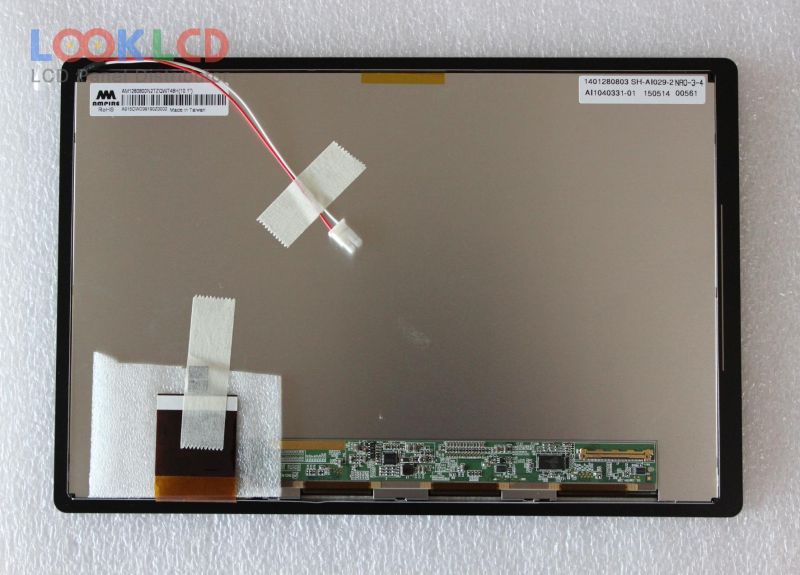

| Nambari ya Sehemu | AM-1280800N2TZQW-T48H |
| Chapa | AMPIRE |
| Ukubwa | 10.1 |
| Maombi | IA |
| Azimio | 1280×800 |
| Muundo | LCM |
| Mwangaza | 850 |
| CR | 800:1 |
| Rangi | 16.7M |
| Mwangaza nyuma | WLED |
| Kiolesura | LVDS |
| chapa ya paneli | AMPIRE |
| mfano wa paneli | AM-1280800N2TZQW-T48H |
| aina ya paneli | a-Si TFT-LCD , LCM |
| saizi ya paneli | 10.1 inch |
| azimio | 1280(RGB)×800 , WXGA |
| hali ya kuonyesha | IPS, Normally Black, Transmissive |
| eneo la kazi | 216.96×135.6 mm |
| muhtasari | 247×166×9.55 mm |
| uso | |
| mwangaza | 850 cd/m² (Typ.) |
| uwiano wa utofautishaji | 800:1 (Typ.) |
| kuonyesha rangi | 16.7M (8-bit), CIE193145% |
| wakati wa majibu | 25 (Typ.)(Tr+Td) |
| angle ya kutazama | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| masafa | 60Hz |
| aina ya taa | 7S6PWLEDWithout Driver |
| kiolesura cha ishara | LVDS (1 ch, 8-bit), 40 pins |
| voltage ya pembejeo | 3.3V (Typ.) |
| maombi | IA |
