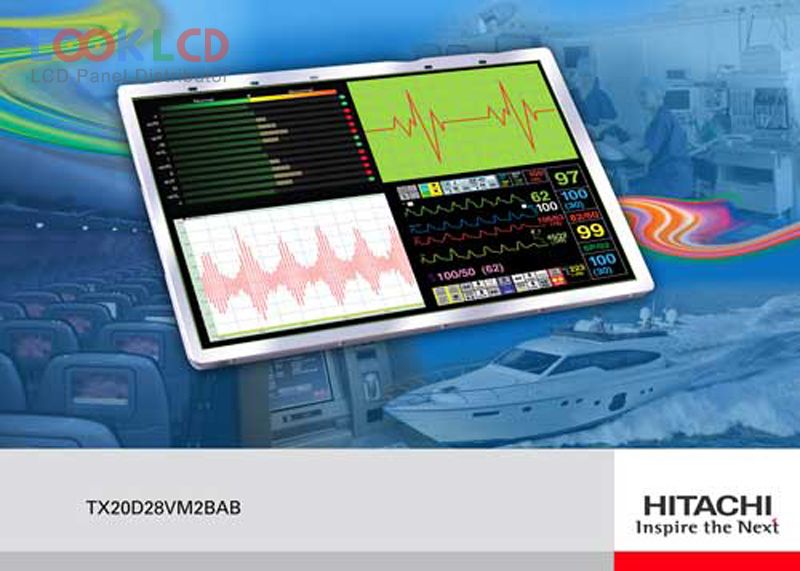

| Nambari ya Sehemu | TX20D28VM2BAB |
| Chapa | KOE |
| Ukubwa | 8.0 |
| Maombi | IA |
| Azimio | 800×480 |
| Muundo | LCM |
| Mwangaza | 550 |
| CR | 600:1 |
| Rangi | 262K |
| Mwangaza nyuma | WLED |
| Kiolesura | LVDS |
| chapa ya paneli | HITACHI |
| mfano wa paneli | TX20D28VM2BAB |
| aina ya paneli | a-Si TFT-LCD , LCM |
| saizi ya paneli | 8.0 inch |
| azimio | 800(RGB)×480 , WVGA |
| hali ya kuonyesha | TN, Normally White, Transmissive |
| eneo la kazi | 174×104.4 mm |
| muhtasari | 189×120 mm |
| uso | |
| mwangaza | 550 cd/m² (Typ.) |
| uwiano wa utofautishaji | 600:1 (Typ.) |
| kuonyesha rangi | 262K (6-bit), CIE193165% |
| wakati wa majibu | 20/10 (Typ.)(Tr/Td) |
| angle ya kutazama | 80/80/60/80 (Typ.)(CR≥10)(L/R/U/D) |
| masafa | 60Hz |
| aina ya taa | 3S17PWLEDEmbedded (LED Driver) |
| kiolesura cha ishara | LVDS (1 ch, 6-bit), 20 pins |
| voltage ya pembejeo | 3.3V (Typ.) |
| maombi | IA |
