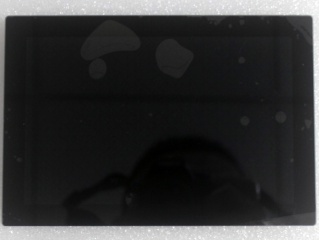

| Nambari ya Sehemu | AM-1280800P4TZQW-T21H |
| Chapa | AMPIRE |
| Ukubwa | 7.0 |
| Maombi | Industrial |
| Azimio | 1280×800 |
| Muundo | a-Si TFT-LCD, LCM |
| Mwangaza | |
| CR | 800:1 |
| Rangi | 16.7M |
| Mwangaza nyuma | WLED |
| Kiolesura | LVDS |
| chapa | AMPIRE |
| mfano | AM-1280800P4TZQW-T21H |
| ukubwa wa diagonal | 7.0 inch |
| aina | a-Si TFT-LCD, LCM |
| muundo wa pixel | 1280(RGB)×800 [WXGA] 217PPI |
| usanidi | RGB Vertical Stripe |
| eneo la kazi | 149.76(H)×93.6(V) mm |
| muhtasari dim. | 174(H)×118(V) ×13.63(D) mm |
| eneo la bezel | - |
| matibabu | Glare (Haze 0%) |
| mwangaza | 850 cd/m² (Typ.) |
| uwiano wa utofautishaji | 800:1 (Typ.) (TM) |
| tazama mwelekeo | Symmetry |
| wakati wa majibu | 35 (Typ.)(Tr+Td) |
| angle ya kutazama | 80/80/80/80 (Typ.)(CR≥10) |
| hali ya uendeshaji | SFT, Normally Black, Transmissive |
| rangi ya msaada | 16.7M 50% NTSC |
| chanzo cha mwanga | WLED [6S4P] , 50K hours , With LED Driver |
| uzito | - |
| iliyoundwa kwa ajili ya | Industrial |
| kiwango cha fremu | 60Hz |
| jopo la kugusa | PCAP |
| aina ya kiolesura | LVDS (1 ch, 8-bit) , 20 pins Connector |
| usambazaji wa nguvu | 3.3V (Typ.) |
| mazingira | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
| 70WVW2A | SII | 7.0 | 800×480 |
| AA070ME01-DA1 | Mitsubishi | 7.0 | 800×480 |
| AM-1280800N1TZQW-T06H | AMPIRE | 10.1 | 1280×800 |
| AM-1280800N2TZQW-00H | AMPIRE | 10.1 | 1280×800 |
| AM-1280800N2TZQW-T48H | AMPIRE | 10.1 | 1280×800 |
| C070FW02 V0 | AUO | 7.0 | 480×234 |
| C070VVN03.1 | AUO | 7.0 | 800×480 |
| LQ7BW566AH | SHARP | 7.0 | 480×234 |
| NL8048BC19-02 | NLT | 7.0 | 800×480 |
| PM070WM3 | E Ink | 7.0 | 800×480 |
