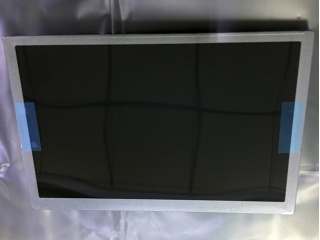

| Nambari ya Sehemu | AT070MP11 |
| Chapa | Mitsubishi |
| Ukubwa | 7.0 |
| Maombi | Industrial Outdoor H |
| Azimio | 800×480 |
| Muundo | LCM , a-Si TFT-LCD |
| Mwangaza | |
| CR | 1000:1 |
| Rangi | 262K/16.7M |
| Mwangaza nyuma | WLED |
| Kiolesura | LVDS |
| mtengenezaji | Mitsubishi |
| jina la mfano | AT070MP11 |
| ukubwa wa skrini | 7.0 inch |
| aina ya skrini | LCM , a-Si TFT-LCD |
| nambari ya pixel | 800(RGB)×480 (WVGA) 133PPI |
| mpangilio | RGB Vertical Stripe |
| eneo amilifu(mm) | 152.4 × 91.44 (H×V) |
| muhtasari(mm) | 169.8 × 109.7 × 9.4 (H×V×D) |
| eneo la bezel(mm) | 154.4 × 93.5 (H×V) |
| matibabu | Antiglare, Hard coating (3H) |
| mwangaza | 1300 cd/m² (Typ.) |
| uwiano wa utofautishaji | 1000 : 1 (Typ.) (TM) |
| angle ya kutazama | 85/85/85/85 (Typ.)(CR≥10) |
| majibu | 4/12 (Typ.)(Tr/Td) ms |
| mtazamo mzuri | Symmetry |
| hali ya kazi | SWV, Normally Black, Transmissive |
| kina cha rangi | 262K/16.7M 50% NTSC |
| backlight | WLED , 100K hours , No Driver |
| wingi | 200g |
| kutumika kwa | Industrial Outdoor High Brightness Automotive Display |
| kiwango cha upya | 60Hz |
| skrini ya kugusa | Without |
| aina ya ishara | LVDS (1 ch, 6/8-bit) , 20 pins Connector |
| usambazaji wa voltage | 3.3V (Typ.) |
| max. ukadiriaji | Storage Temp.: -40 ~ 85 °C Operating Temp.: -40 ~ 85 °C ; Vibration Level: 6.8G (66.64 m/s²) |
