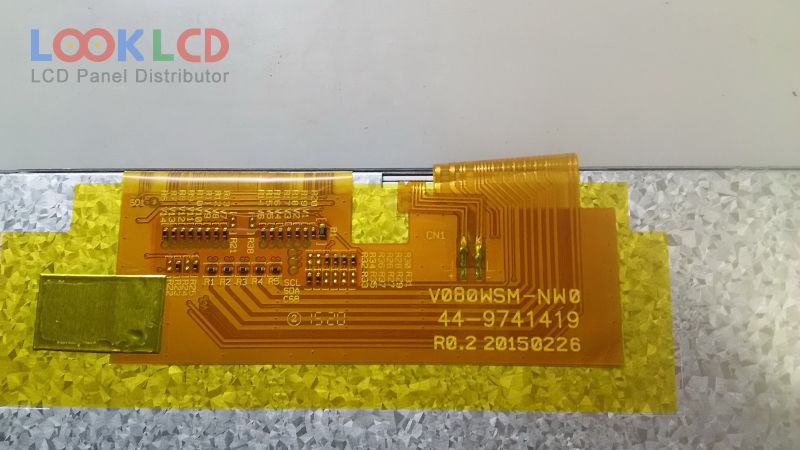

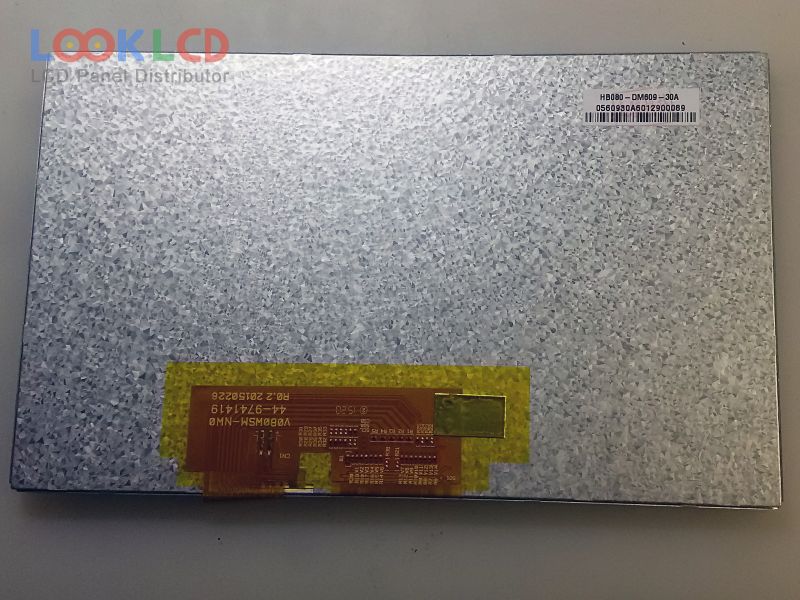

| Nambari ya Sehemu | AV080WSM-NW0 |
| Chapa | BOE |
| Ukubwa | 8.0 |
| Maombi | CNS |
| Azimio | 1024×600 |
| Muundo | LCM |
| Mwangaza | 600 |
| CR | 800:1 |
| Rangi | 16.7M |
| Mwangaza nyuma | WLED |
| Kiolesura | LVDS |
| chapa ya paneli | BOE |
| mfano wa paneli | AV080WSM-NW0 |
| aina ya paneli | a-Si TFT-LCD , LCM |
| saizi ya paneli | 8.0 inch |
| azimio | 1024(RGB)×600 , WSVGA |
| hali ya kuonyesha | ADS, Normally Black, Transmissive |
| eneo la kazi | 176.64×99.36 mm |
| muhtasari | 192.8×116.9 mm |
| uso | |
| mwangaza | 600 cd/m² (Typ.) |
| uwiano wa utofautishaji | 800:1 (Typ.) |
| kuonyesha rangi | 16.7M (6-bit + Hi-FRC), CIE193150% |
| wakati wa majibu | 25 (Typ.)(Tr+Td) |
| angle ya kutazama | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| masafa | 60Hz |
| aina ya taa | 3S10PWLEDWithout Driver |
| kiolesura cha ishara | LVDS (1 ch, 8-bit), 40 pins |
| voltage ya pembejeo | 3.3/11.5/18.0/-10.0V (Typ.)(VDD/AVDD/VGH/VGL) |
| maombi | CNS |
| CLAA061LA0ACW | CPT | 6.1 | 800×480 |
| G070Y2-T02 | Innolux | 7.0 | 800×480 |
| L5F30818P04 | SONY | 6.5 | 800×480 |
| LA080WV1-TD01 | LG Display | 8.0 | 800×480 |
| LB058WQ1-SD03 | LG Display | 5.8 | 400×240 |
| LQ070T5GC01 | SHARP | 7.0 | |
| LQ080Y5DZ30A | SHARP | 8.0 | 800×480 |
| LTA070B792F | TOSHIBA | 7.0 | 800×480 |
| ND068-101A1 | 6.8 | 1280×480 | |
| TM062RDZG10 | Tianma | 6.2 | 800×480 |
