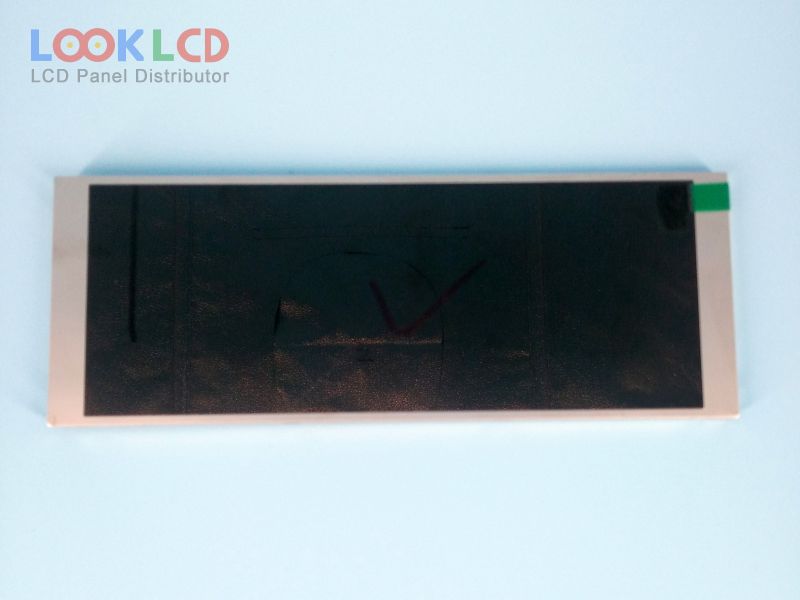

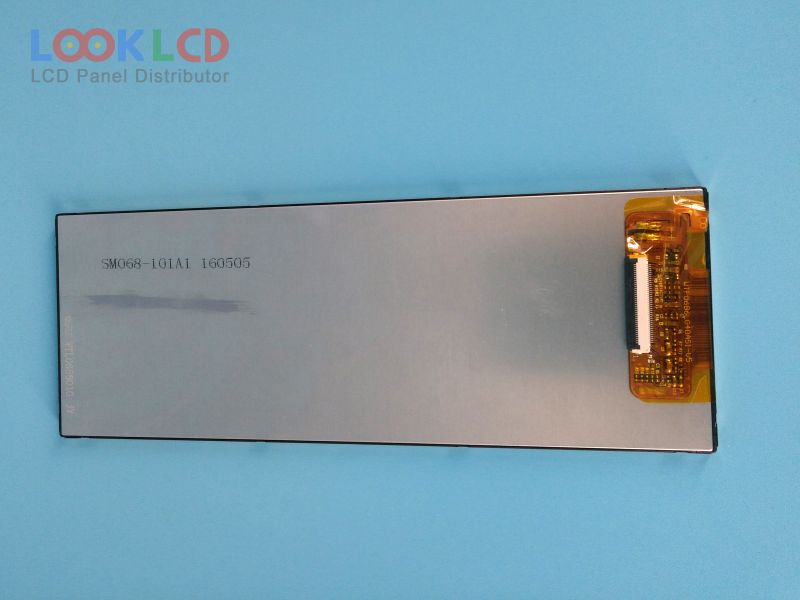

| Nambari ya Sehemu | ND068-101A1 |
| Chapa | |
| Ukubwa | 6.8 |
| Maombi | CNS |
| Azimio | 1280×480 |
| Muundo | LCM |
| Mwangaza | 700 |
| CR | 1000:1 |
| Rangi | 16.7M |
| Mwangaza nyuma | WLED |
| Kiolesura | LVDS |
| chapa ya paneli | |
| mfano wa paneli | ND068-101A1 |
| aina ya paneli | a-Si TFT-LCD , LCM |
| saizi ya paneli | 6.8 inch |
| azimio | 1280(RGB)×480 |
| hali ya kuonyesha | TN, Normally White, Transmissive |
| eneo la kazi | 160.59×60.22 mm |
| muhtasari | 181×66.6×7.15 mm |
| uso | |
| mwangaza | 700 cd/m² (Typ.) |
| uwiano wa utofautishaji | 1000:1 (Typ.) |
| kuonyesha rangi | 16.7M (8-bit), CIE193160% |
| wakati wa majibu | 20 (Typ.)(Tr+Td) |
| angle ya kutazama | 60/70/70/70 (Typ.)(CR≥10)(L/R/U/D) |
| masafa | 60Hz |
| aina ya taa | 3S6PWLEDWithout Driver |
| kiolesura cha ishara | LVDS (1 ch, 8-bit), 40 pins |
| voltage ya pembejeo | 1.8/3.3/9.7/18/-8V (Typ.)(VCC/VDD/AVDD/VGH/VGL) |
| maombi | CNS |
| ND068-101A1 | 6.8 | 1280×480 |
| AT070TN84 V.1 | Innolux | 7.0 | 800×480 |
| C080VW03 V0 | AUO | 8.0 | 800×480 |
| LQ042T5DZ01 | SHARP | 4.2 | 480×272 |
| LQ049B5DG02 | SHARP | 4.9 | 320×96 |
| LQ5AW136T | SHARP | 5.0 | 320×234 |
| PA050DS7N1 | E Ink | 5.0 | 320×234 |
| PA050XSG | E Ink | 5.0 | 320×234 |
| PD040QX1 | E Ink | 4.0 | 320×240 |
| PW062XU8 | E Ink | 6.2 | 480×234 |
| TM070WA-22L06 | SANYO | 7.0 | 480×234 |
