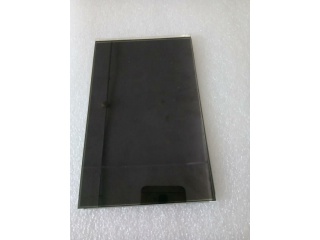

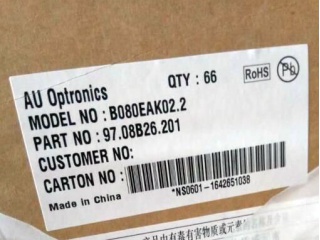

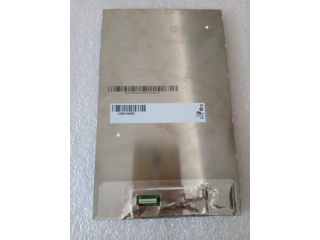

| Nambari ya Sehemu | B080EAK02.2 |
| Chapa | AUO |
| Ukubwa | 8.0 |
| Maombi | Pad & Tablet |
| Azimio | 800×1280 |
| Muundo | a-Si TFT-LCD, LCM |
| Mwangaza | |
| CR | 900:1 |
| Rangi | 16.7M |
| Mwangaza nyuma | 4S5P |
| Kiolesura | MIPI |
| chapa ya paneli | AUO |
| mfano wa paneli | B080EAK02.2 |
| saizi ya paneli | 8.0" |
| aina ya paneli | a-Si TFT-LCD, LCM |
| azimio | 800(RGB)×1280, WXGA, 188PPI |
| muundo wa pixel | RGB Vertical Stripe |
| eneo la maonyesho | 107.64(W)×172.224(H) mm |
| ufunguzi wa bezel | - |
| saizi ya muhtasari | 113.72(W)×183.764(H) ×4.1(D) mm |
| uso | Glare (Haze 0%) |
| mwangaza | 360 cd/m² (Typ.) |
| uwiano wa utofautishaji | 900:1 (Typ.) (TM) |
| angle ya kutazama | 85/85/85/85 (Typ.)(CR≥10) |
| hali ya kuonyesha | AHVA, Normally Black, Transmissive |
| mwonekano bora zaidi | Symmetry |
| wakati wa majibu | 25 (Typ.)(Tr+Tf) |
| kuonyesha rangi | 16.7M 58% NTSC |
| aina ya taa | 4S5P WLED , 15K hours , Without Driver |
| masafa | 60Hz |
| skrini ya kugusa | Without |
| uzito wa paneli | 120g (Max.) |
| maombi | Pad & Tablet |
| kiolesura cha ishara | MIPI (4 data lanes) , 39 pins Connector |
| voltage ya pembejeo | 1.8/3.3V (Typ.)(VCC1/VC2) |
| mazingira | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
