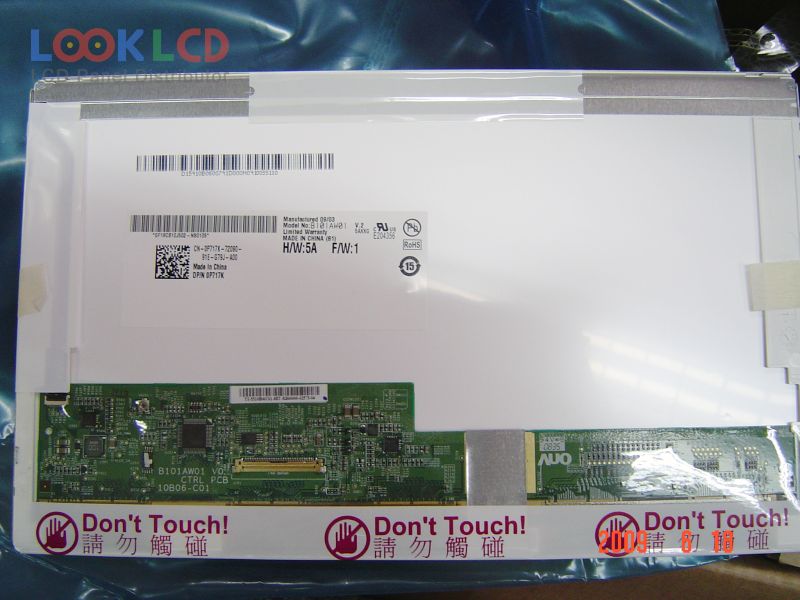

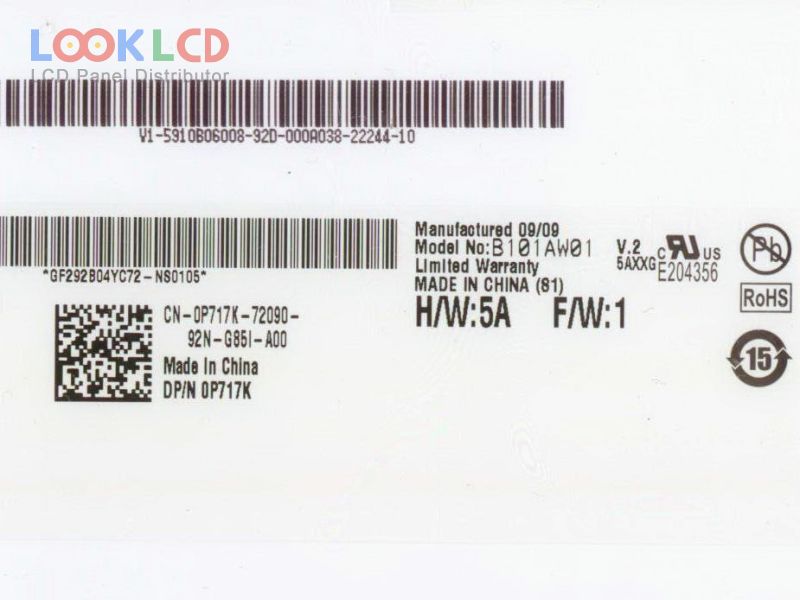

| Nambari ya Sehemu | B101AW01 V2 HW5A |
| Chapa | AUO |
| Ukubwa | 10.1 |
| Maombi | NOPC |
| Azimio | 1024×576 |
| Muundo | LCM |
| Mwangaza | 200 |
| CR | 500:1 |
| Rangi | 262K |
| Mwangaza nyuma | WLED |
| Kiolesura | LVDS |
| chapa ya paneli | AUO |
| mfano wa paneli | B101AW01 V2 HW5A 5 Compatible model |
| aina ya paneli | a-Si TFT-LCD , LCM |
| saizi ya paneli | 10.1 inch |
| azimio | 1024(RGB)×576 , WSVGA |
| hali ya kuonyesha | TN, Normally White, Transmissive |
| eneo la kazi | 222.72×125.28 mm |
| muhtasari | 235×143×5.2 mm |
| mtindo wa sura | Wedge (PCBA Bent, Depth ≥5.2mm) |
| uso | Antiglare, Hard coating (3H) |
| mwangaza | 200 cd/m² (Typ.) |
| uwiano wa utofautishaji | 500:1 (Typ.) |
| kuonyesha rangi | 262K (6-bit), CIE193145% |
| wakati wa majibu | 8 (Typ.)(Tr+Td) |
| angle ya kutazama | 45/45/15/35 (Typ.)(CR≥10)(L/R/U/D) |
| masafa | 60Hz |
| aina ya taa | WLEDEmbedded (LED Driver) |
| kiolesura cha ishara | LVDS (1 ch, 6-bit), 40 pins |
| voltage ya pembejeo | 3.3V (Typ.) |
| maombi | NOPC |
| B101AW01 V0 HW5A | AUO | 10.1 | 1024×576 |
| B101AW01 V2 HW0A | AUO | 10.1 | 1024×576 |
| B101AW01 V2 HW5A | AUO | 10.1 | 1024×576 |
| B101EVN06.1 | AUO | 10.1 | 1280×800 |
| B101UAN01.7 HW1A | AUO | 10.1 | 1920×1200 |
| CLAA101WA01A | CPT | 10.1 | 1366×768 |
| HSD101PFW3-A00 | HannStar | 10.1 | 1024×600 |
| LP101WSA-TLN1 | LG Display | 10.1 | 1024×600 |
| N101L6-L0D | Innolux | 10.1 | 1024×600 |
| N101N6-L02 | Innolux | 10.1 | 1024×576 |
| B089AW01 V1 | AUO | 8.9 | 1024×600 |
| B116XW05 V0 | AUO | 11.6 | 1366×768 |
| B116XW05 V004 | AUO | 11.6 | 1366×768 |
| BA101WS1-100 | BOE | 10.1 | 1024×600 |
| CLAA102NC01CW | CPT | 10.2 | 1024×600 |
| M101MWW4 R0 | IVO | 10.1 | 1024×600 |
| M101NWT2 R3 | IVO | 10.1 | 1024×600 |
| N089L6-L02 | Innolux | 8.9 | 1024×600 |
| N101N6-L01 | Innolux | 10.1 | 1024×576 |
| N116B6-L02 | Innolux | 11.6 | 1366×768 |
