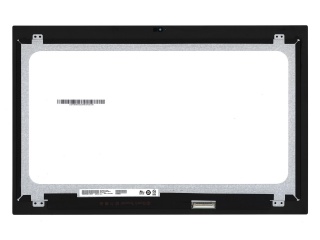

| Nambari ya Sehemu | B156HAB02.0 |
| Chapa | AUO |
| Ukubwa | 15.6 |
| Maombi | Laptop |
| Azimio | 1920×1080 |
| Muundo | a-Si TFT-LCD, Assemb |
| Mwangaza | |
| CR | 800:1 |
| Rangi | 262K |
| Mwangaza nyuma | WLED |
| Kiolesura | eDP |
| chapa ya paneli | AUO |
| mfano wa paneli | B156HAB02.0 |
| saizi ya paneli | 15.6" |
| aina ya paneli | a-Si TFT-LCD, Assembly |
| azimio | 1920(RGB)×1080, FHD, 141PPI |
| muundo wa pixel | RGB Vertical Stripe |
| eneo la maonyesho | 344.16(W)×193.59(H) mm |
| ufunguzi wa bezel | - |
| mwangaza | - |
| uwiano wa utofautishaji | 800:1 (Typ.) (TM) |
| angle ya kutazama | 85/85/85/85 (Typ.)(CR≥10) |
| hali ya kuonyesha | - |
| mwonekano bora zaidi | Symmetry |
| wakati wa majibu | 25 (Typ.)(Tr+Td) |
| kuonyesha rangi | 262K |
| aina ya taa | WLED , 15K hours , With LED Driver |
| masafa | 60Hz |
| skrini ya kugusa | On-Cell Touch |
| mtindo wa sura | - |
| maombi | Laptop |
| kiolesura cha ishara | eDP (2 Lanes) Connector |
| voltage ya pembejeo | 3.3V (Typ.) |
| mazingira | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
