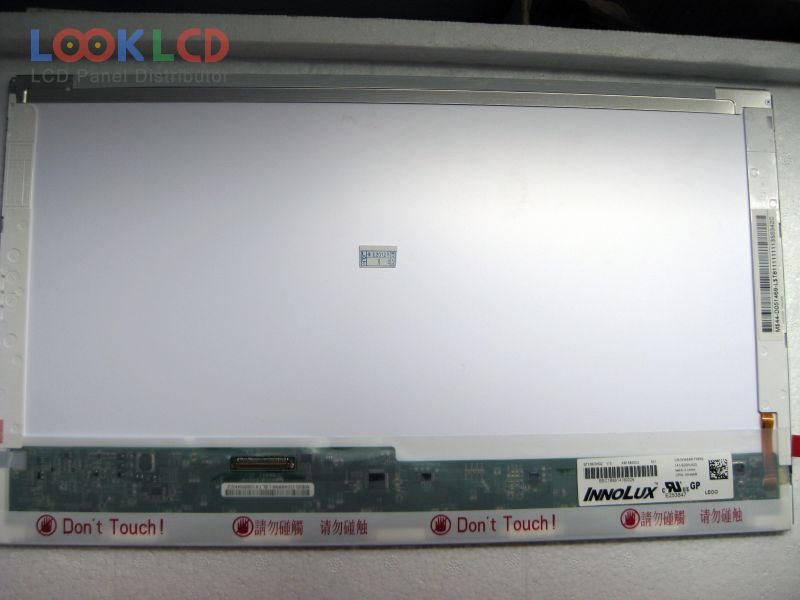

| Nambari ya Sehemu | BT156GW02 V.0 |
| Chapa | Innolux |
| Ukubwa | 15.6 |
| Maombi | NBPC |
| Azimio | 1366×768 |
| Muundo | LCM |
| Mwangaza | 220 |
| CR | 500:1 |
| Rangi | 262K |
| Mwangaza nyuma | WLED |
| Kiolesura | LVDS |
| chapa ya paneli | INNOLUX |
| mfano wa paneli | BT156GW02 V.0 16 Compatible model |
| aina ya paneli | a-Si TFT-LCD , LCM |
| saizi ya paneli | 15.6 inch |
| azimio | 1366(RGB)×768 , WXGA |
| hali ya kuonyesha | TN, Normally White, Transmissive |
| eneo la kazi | 344.232×193.536 mm |
| muhtasari | 359.3×209.5×5.5 mm |
| mtindo wa sura | Wedge (PCBA Bent, Depth ≥5.2mm) |
| uso | Antiglare, Hard coating (3H) |
| mwangaza | 220 cd/m² (Typ.) |
| uwiano wa utofautishaji | 500:1 (Typ.) |
| kuonyesha rangi | 262K (6-bit), CIE193160% |
| wakati wa majibu | 8 (Typ.)(Tr+Td) |
| angle ya kutazama | 40/40/15/30 (Min.)(CR≥10)(L/R/U/D) |
| masafa | 60Hz |
| aina ya taa | WLEDEmbedded (LED Driver) |
| kiolesura cha ishara | LVDS (1 ch, 6-bit), 40 pins |
| voltage ya pembejeo | 3.3V (Typ.) |
| maombi | NBPC |
| B156RW01 V0 | AUO | 15.6 | 1600×900 |
| B156XW02 V2 HW4A | AUO | 15.6 | 1366×768 |
| BT156GW01 V.3 | Innolux | 15.6 | 1366×768 |
| BT156GW01 V.4 | Innolux | 15.6 | 1366×768 |
| BT156GW02 V.0 | Innolux | 15.6 | 1366×768 |
| CLAA156WA07A | CPT | 15.6 | 1366×768 |
| LP156WD1-TLB1 | LG Display | 15.6 | 1600×900 |
| LTN156AT05-H02 | Samsung | 15.6 | 1366×768 |
| LTN156AT20-W01 | Samsung | 15.6 | 1366×768 |
| LTN156KT01-W01 | Samsung | 15.6 | 1600×900 |
| B170UW02 V0 | AUO | 17.0 | 1920×1200 |
| CLAA121UA01CW | CPT | 12.1 | 1600×900 |
| CLAA140WB11A | CPT | 14.0 | 1366×768 |
| CLAA156WA01A | CPT | 15.6 | 1366×768 |
| LP121X05-A2 | LG Display | 12.1 | 1024×768 |
| LP150E07-A3K1 | LG Display | 15.0 | 1400×1050 |
| LTD133EWHK | TOSHIBA | 13.3 | 1280×800 |
| LTN140AT20-W05 | Samsung | 14.0 | 1366×768 |
| N121IB-L05 Rev.C1 | Innolux | 12.1 | 1280×800 |
| N140BGE-L32 | Innolux | 14.0 | 1366×768 |
