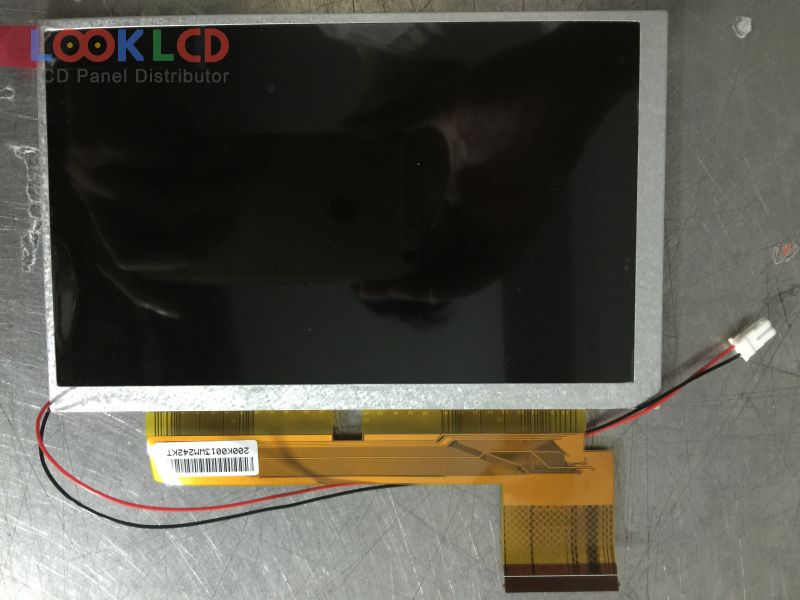

| Nambari ya Sehemu | CLAA070LH01AW |
| Chapa | CPT |
| Ukubwa | 7.0 |
| Maombi | CNS |
| Azimio | 800×480 |
| Muundo | LCM |
| Mwangaza | 600 |
| CR | 800:1 |
| Rangi | 262K |
| Mwangaza nyuma | WLED |
| Kiolesura | TTL |
| chapa ya paneli | CPT |
| mfano wa paneli | CLAA070LH01AW |
| aina ya paneli | a-Si TFT-LCD , LCM |
| saizi ya paneli | 7.0 inch |
| azimio | 800(RGB)×480 , WVGA |
| hali ya kuonyesha | TN, Normally White, Transmissive |
| eneo la kazi | 152.4×91.44 mm |
| muhtasari | 165×104×7.55 mm |
| uso | Antiglare, Reflection 4.0% (Typ.) |
| mwangaza | 600 cd/m² (Typ.) |
| uwiano wa utofautishaji | 800:1 (Typ.) |
| kuonyesha rangi | 262K (6-bit), CIE193150% |
| wakati wa majibu | 40 (Max.)(Tr+Td) |
| angle ya kutazama | 55/55/60/30 (Min.)(CR≥10)(L/R/U/D) |
| masafa | 60Hz |
| aina ya taa | 7S2PWLEDWithout Driver |
| kiolesura cha ishara | TTL (1 ch, 6-bit), 60 pins |
| voltage ya pembejeo | 3.3/13.0/18.0/-6.0V (Typ.)(DVDD/AVDD/VGH/VGL) |
| maombi | CNS |
