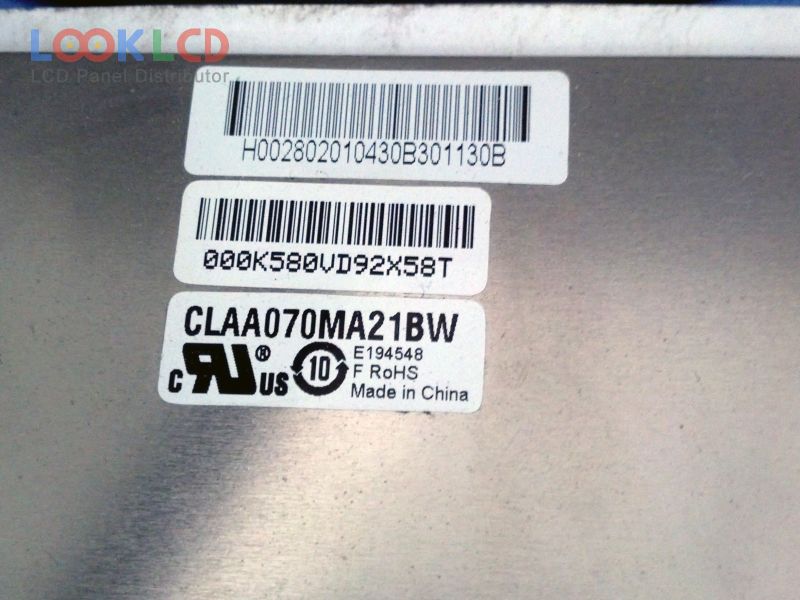

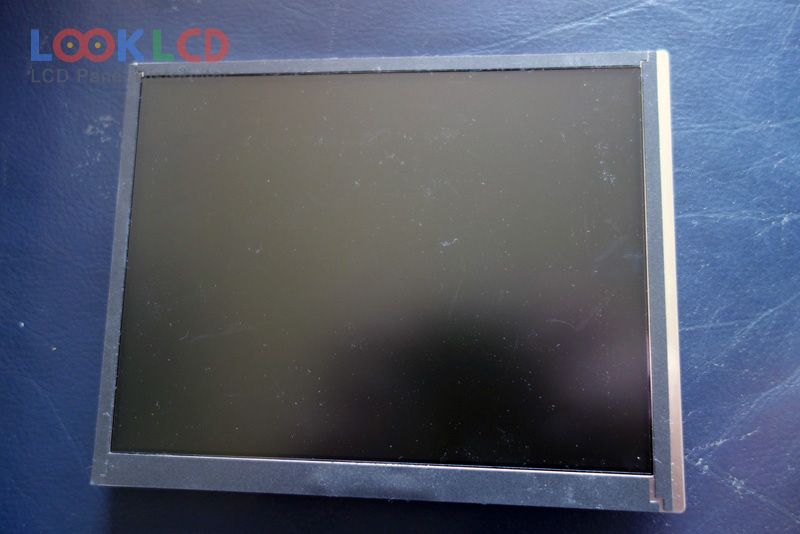

| Nambari ya Sehemu | CLAA070MA21BW |
| Chapa | CPT |
| Ukubwa | 7.0 |
| Maombi | DPF |
| Azimio | 800×600 |
| Muundo | LCM |
| Mwangaza | 215 |
| CR | 500:1 |
| Rangi | 16.2M |
| Mwangaza nyuma | WLED |
| Kiolesura | TTL |
| chapa ya paneli | CPT |
| mfano wa paneli | CLAA070MA21BW |
| aina ya paneli | a-Si TFT-LCD , LCM |
| saizi ya paneli | 7.0 inch |
| azimio | 800(RGB)×600 , SVGA |
| hali ya kuonyesha | TN, Normally White, Transmissive |
| eneo la kazi | 141.6×106.2 mm |
| muhtasari | 156.4×122.25×3.5 mm |
| uso | Antiglare, Hard coating (3H) |
| mwangaza | 215 cd/m² (Typ.) |
| uwiano wa utofautishaji | 500:1 (Typ.) |
| kuonyesha rangi | 16.2M (6-bit + FRC), CIE193142% |
| wakati wa majibu | 20 (Typ.)(Tr+Td) |
| angle ya kutazama | 50/70/70/70 (Typ.)(CR≥10)(L/R/U/D) |
| aina ya taa | 2S7PWLEDWithout Driver |
| kiolesura cha ishara | TTL (1 ch, 8-bit), 60 pins |
| voltage ya pembejeo | 3.3/9.6/18/-6V (Typ.)(VCC/AVDD/VGH/VGL) |
| maombi | DPF |
| CLAA070LC05CW | CPT | 7.0 | 800×480 |
| CLAA070LF06CW | CPT | 7.0 | 800×480 |
| CLAA070LFB1 CW | CPT | 7.0 | 800×480 |
| CLAA070MA0ACW | CPT | 7.0 | 800×600 |
| CLAA070NC0DCT | CPT | 7.0 | 1024×600 |
| CLAA070ND30CW | CPT | 7.0 | 1024×600 |
| CLAA070NJ07CW | CPT | 7.0 | 1024×600 |
| CLAA070NP01 | CPT | 7.0 | 1024×600 |
| CLAA070WA03 | CPT | 7.0 | 480×234 |
| CLAA070WP03 | CPT | 7.0 | 800×1280 |
| A070FW03 VB | AUO | 7.0 | 480×234 |
| A070SN01 V3 | AUO | 7.0 | 800×600 |
| A070SN02 V0 | AUO | 7.0 | 800×600 |
| A080SN01 V0 | AUO | 8.0 | 800×600 |
| AT080TN43 | Innolux | 8.0 | 800×600 |
| AT102TN03 V.9 | Innolux | 10.2 | 800×480 |
| EJ080NA-04C | Innolux | 8.0 | 1024×768 |
| LB070WV1-TD07 | LG Display | 7.0 | 800×480 |
| LQ090Y3DG01A | SHARP | 9.0 | 800×480 |
| LW700AT9901 | Innolux | 7.0 | 800×480 |
