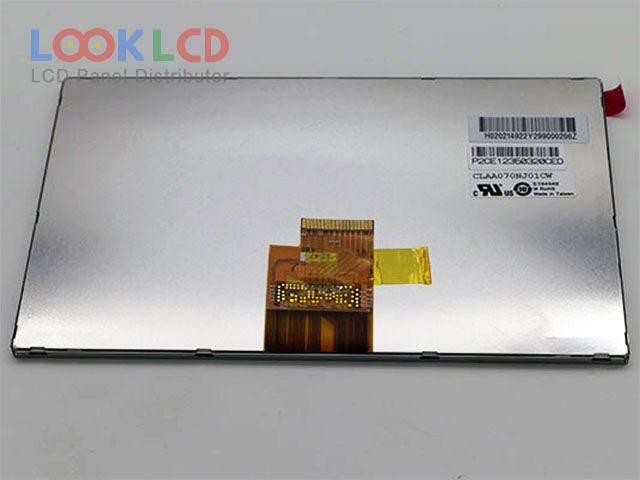

| Nambari ya Sehemu | CLAA070NJ01CW |
| Chapa | CPT |
| Ukubwa | 7.0 |
| Maombi | CNS |
| Azimio | 1024×600 |
| Muundo | LCM |
| Mwangaza | 550 |
| CR | 800:1 |
| Rangi | 262K/16.7M |
| Mwangaza nyuma | WLED |
| Kiolesura | LVDS |
| chapa ya paneli | CPT |
| mfano wa paneli | CLAA070NJ01CW |
| aina ya paneli | a-Si TFT-LCD , LCM |
| saizi ya paneli | 7.0 inch |
| azimio | 1024(RGB)×600 , WSVGA |
| hali ya kuonyesha | TN, Normally White, Transmissive |
| eneo la kazi | 154.214×85.92 mm |
| muhtasari | 164.9×100×3.7 mm |
| uso | Antiglare |
| mwangaza | 550 cd/m² (Typ.) |
| uwiano wa utofautishaji | 800:1 (Typ.) |
| kuonyesha rangi | 262K/16.7M (6-bit / 6-bit + Hi-FRC), CIE193150% |
| wakati wa majibu | 25 (Typ.)(Tr+Td) |
| angle ya kutazama | 80/80/60/70 (Typ.)(CR≥10)(L/R/U/D) |
| masafa | 60Hz |
| aina ya taa | 6S6PWLEDWithout Driver |
| kiolesura cha ishara | LVDS (1 ch, 6/8-bit), 40 pins |
| voltage ya pembejeo | 3.3/9.6/18.0/-6.0V (Typ.)(VDD/AVDD/VGH/VGL) |
| maombi | CNS |
| CLAA070LB01CW | CPT | 7.0 | 800×480 |
| CLAA070LC05CW | CPT | 7.0 | 800×480 |
| CLAA070LC0ACW | CPT | 7.0 | 800×480 |
| CLAA070LC0CCW | CPT | 7.0 | 800×480 |
| CLAA070LC0FCT | CPT | 7.0 | 800×480 |
| CLAA070NC0BCT | CPT | 7.0 | 1024×600 |
| CLAA070NC0DCT | CPT | 7.0 | 1024×600 |
| CLAA070ND26CW | CPT | 7.0 | 1024×600 |
| CLAA070VA01 | CPT | 7.0 | 800×480 |
| CLAA070WP06G XG | CPT | 7.0 | 800×1280 |
| A070VW05 V1 | AUO | 7.0 | 800×480 |
| AM-800480STMQW-00 | AMPIRE | 7.0 | 800×480 |
| AT080TN42 V.1 | Innolux | 8.0 | 800×600 |
| C043GW01 V0 | AUO | 4.3 | 400×234 |
| LB070WV3-SD01 | LG Display | 7.0 | 800×480 |
| LQ070Y5DA02A | SHARP | 7.0 | 800×480 |
| LQ070Y5DG01 | SHARP | 7.0 | 800×480 |
| M090SWP1 R0 | IVO | 9.0 | 800×480 |
| TM101DDHG01 | Tianma | 10.1 | 1024×600 |
| YX050800480WTIPS | 5.0 | 800×480 |
