| Nambari ya Sehemu | COM70H7M24ULC |
| Chapa | Ortustech |
| Ukubwa | 7.0 |
| Maombi | Industrial Outdoor H |
| Azimio | 800×480 |
| Muundo | a-Si TFT-LCD, LCM |
| Mwangaza | |
| CR | 700:13:1 |
| Rangi | 262K/16.7M |
| Mwangaza nyuma | WLED |
| Kiolesura | LVDS |
| chapa | Ortustech |
| mfano | COM70H7M24ULC |
| ukubwa wa diagonal | 7.0 inch |
| aina | a-Si TFT-LCD, LCM |
| muundo wa pixel | 800(RGB)×480 [WVGA] 133PPI |
| usanidi | RGB Vertical Stripe |
| eneo la kazi | 152.4(H)×91.44(V) mm |

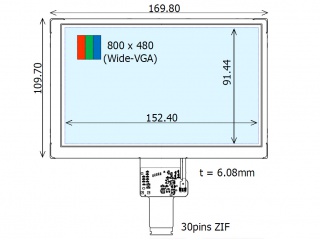

| muhtasari dim. | 169.8(H)×109.7(V) ×6.11(D) mm |
| eneo la bezel | - |
| matibabu | Hard coating (3H) |
| mwangaza | 790 cd/m² (Typ.) |
| uwiano wa utofautishaji | 700:1 (Typ.) (TM) 3:1 (Typ.) (RF) |
| tazama mwelekeo | Symmetry |
| wakati wa majibu | 60/40 (Max.)(Tr/Td) |
| angle ya kutazama | 80/80/80/80 (Min.)(CR≥10) |
| hali ya uendeshaji | VA, Normally Black, Transflective |
| rangi ya msaada | 262K/16.7M 50% NTSC |
| chanzo cha mwanga | WLED [8S2P] , 100K hours , W/O Driver |
| uzito | 170g (Typ.) |
| iliyoundwa kwa ajili ya | Industrial Outdoor High Brightness Automotive Display |
| kiwango cha fremu | 60Hz |
| jopo la kugusa | Without |
| aina ya kiolesura | LVDS (1 ch, 6/8-bit) , 30 pins FPC |
| usambazaji wa nguvu | 3.3V (Typ.) |
| mazingira | Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -40 ~ 95 °C ; Vibration Level: 6.8G (66.64 m/s²) |
