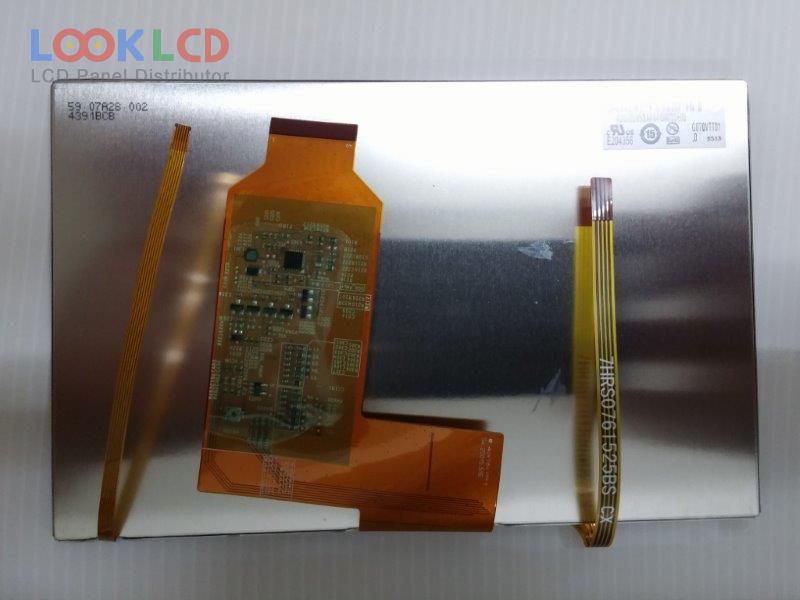

| Nambari ya Sehemu | G070VTT01.0 |
| Chapa | AUO |
| Ukubwa | 7.0 |
| Maombi | IA |
| Azimio | 800×480 |
| Muundo | LCM |
| Mwangaza | 360 |
| CR | 500:1 |
| Rangi | 262K |
| Mwangaza nyuma | WLED |
| Kiolesura | TTL |
| chapa ya paneli | AUO |
| mfano wa paneli | G070VTT01.0 |
| aina ya paneli | a-Si TFT-LCD , LCM |
| saizi ya paneli | 7.0 inch |
| azimio | 800×480(RGB) , WVGA |
| hali ya kuonyesha | TN, Normally White, Transmissive |
| eneo la kazi | 152.4×91.44 mm |
| muhtasari | 165×105.8×4.81 mm |
| uso | Antiglare, Hard coating (3H) |
| mwangaza | 360 cd/m² (Typ.) |
| uwiano wa utofautishaji | 500:1 (Typ.) |
| kuonyesha rangi | 262K (6-bit), CIE193150% |
| wakati wa majibu | 12/18 (Typ.)(Tr/Td) |
| angle ya kutazama | 65/65/50/60 (Typ.)(CR≥10)(L/R/U/D) |
| masafa | 60Hz |
| aina ya taa | 8S3PWLEDWithout Driver |
| kiolesura cha ishara | Parallel RGB (1 ch, 6-bit), 40 pins |
| voltage ya pembejeo | 3.3V (Typ.) |
| maombi | IA |
| AT070TN07 V.A | Innolux | 7.0 | 480×234 |
| BA070WS1-100 | BOE | 7.0 | 1024×600 |
| CLAA070WA01 | CPT | 7.0 | 480×234 |
| G070VTN01.0 | AUO | 7.0 | 800×480 |
| G070VTT01.0 | AUO | 7.0 | 800×480 |
| G070VVN01.0 | AUO | 7.0 | 800×480 |
| G070VVN01.1 | AUO | 7.0 | 800×480 |
| G070VW01 V0 | AUO | 7.0 | 800×480 |
| G070VW01 V1 | AUO | 7.0 | 800×480 |
| PW070XUA | E Ink | 7.0 | 480×234 |
| AA150XC01 | Mitsubishi | 15.0 | 1024×768 |
| AC156GA01 | Mitsubishi | 15.6 | 1366×768 |
| EDTCB29QB0 | Panasonic | 10.4 | 800×600 |
| G065VN01 V0 | AUO | 6.5 | 640×480 |
| G150XGE-L07 | Innolux | 15.0 | 1024×768 |
| G156XW01 V0 | AUO | 15.6 | 1366×768 |
| G170EG01 V0 | AUO | 17.0 | 1280×1024 |
| LM12S49 | SHARP | 12.1 | 800×600 |
| LQ12X12 | SHARP | 12.1 | 1024×768 |
| OEL9M0065-W-E | Other | 2.7 | 256×64 |
