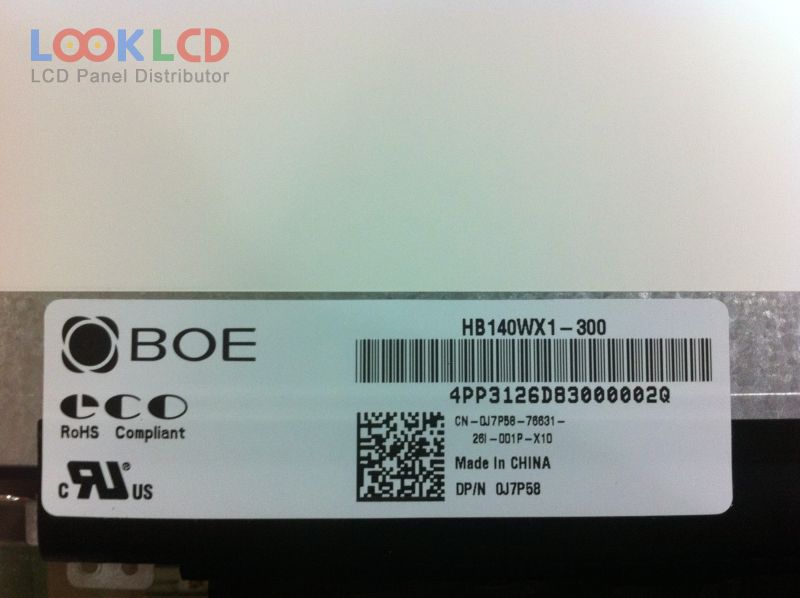

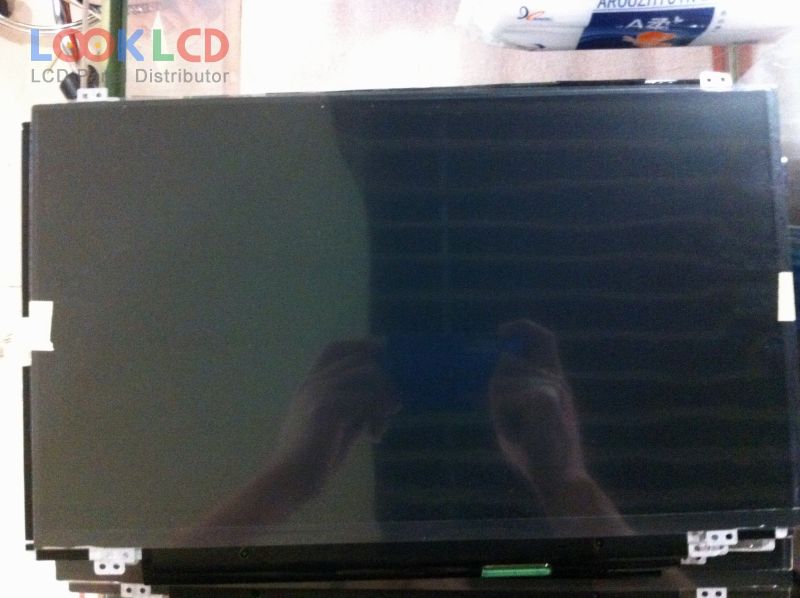

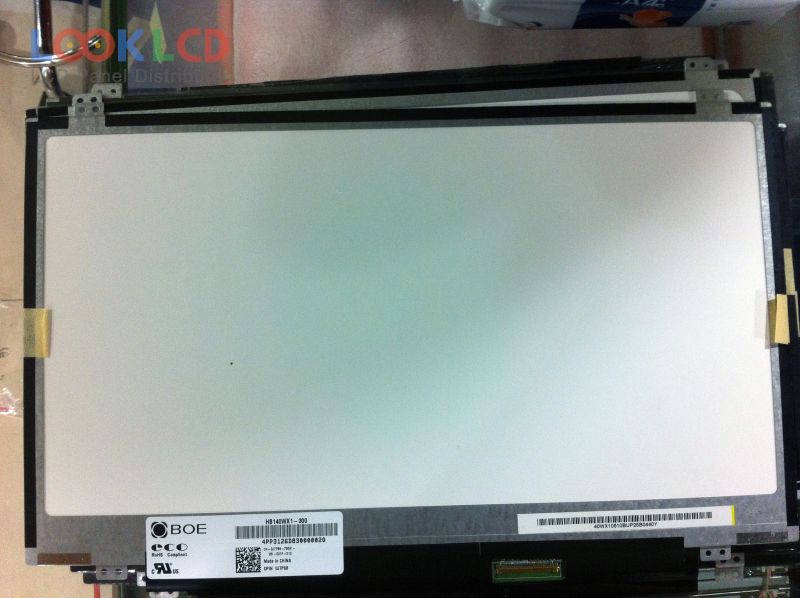

| Nambari ya Sehemu | HB140WX1-300 |
| Chapa | BOE |
| Ukubwa | 14.0 |
| Maombi | NBPC |
| Azimio | 1366×768 |
| Muundo | LCM |
| Mwangaza | 200 |
| CR | 600:1 |
| Rangi | 262K |
| Mwangaza nyuma | WLED |
| Kiolesura | LVDS |
| chapa ya paneli | BOE |
| mfano wa paneli | HB140WX1-300 2 Compatible model |
| aina ya paneli | a-Si TFT-LCD , LCM |
| saizi ya paneli | 14.0 inch |
| azimio | 1366(RGB)×768 , WXGA |
| hali ya kuonyesha | TN, Normally White, Transmissive |
| eneo la kazi | 309.399×173.952 mm |
| muhtasari | 320.4×187.1×3.6 mm |
| mtindo wa sura | Flat (PCBA Flat, Depth 3.4~4.0mm) |
| uso | Hard coating (3H) |
| mwangaza | 200 cd/m² (Typ.) |
| uwiano wa utofautishaji | 600:1 (Typ.) |
| kuonyesha rangi | 262K (6-bit), CIE193148% |
| wakati wa majibu | 8 (Typ.)(Tr+Td) |
| angle ya kutazama | 45/45/20/40 (Typ.)(CR≥10)(L/R/U/D) |
| masafa | 60Hz |
| aina ya taa | 9S4PWLEDEmbedded (LED Driver) |
| kiolesura cha ishara | LVDS (1 ch, 6-bit), 40 pins |
| voltage ya pembejeo | 3.3V (Typ.) |
| maombi | NBPC |
| HB140WH1-504 | BOE | 14.0 | 1366×768 |
| HB140WX1-100 | BOE | 14.0 | 1366×768 |
| HB140WX1-200 | BOE | 14.0 | 1366×768 |
| HB140WX1-300 | BOE | 14.0 | 1366×768 |
| HB140WX1-301 | BOE | 14.0 | 1366×768 |
| HB140WX1-400 | BOE | 14.0 | 1366×768 |
| HB140WX1-401 | BOE | 14.0 | 1366×768 |
| HB140WX1-500 | BOE | 14.0 | 1366×768 |
| HB140WX1-501 | BOE | 14.0 | 1366×768 |
| N140B6-L01 | Innolux | 14.0 | 1366×768 |
| B121EW03 V0 | AUO | 12.1 | 1280×800 |
| B133EW03 V0 | AUO | 13.3 | 1280×800 |
| B156HW01 V4 | AUO | 15.6 | 1920×1080 |
| LM-DA53-22NTW | SANYO | 8.0 | 640×480 |
| LP133WF6-SSA1 | LG Display | 13.3 | 1920×1080 |
| LTN134AT01-001 | Samsung | 13.4 | 1366×768 |
| LTN140AT02-G01 | Samsung | 14.0 | 1366×768 |
| LTN141AT02-301 | Samsung | 14.1 | 1280×800 |
| LTN141AT03-301 | Samsung | 14.1 | 1280×800 |
| N141X6-L01 | Innolux | 14.1 | 1024×768 |
