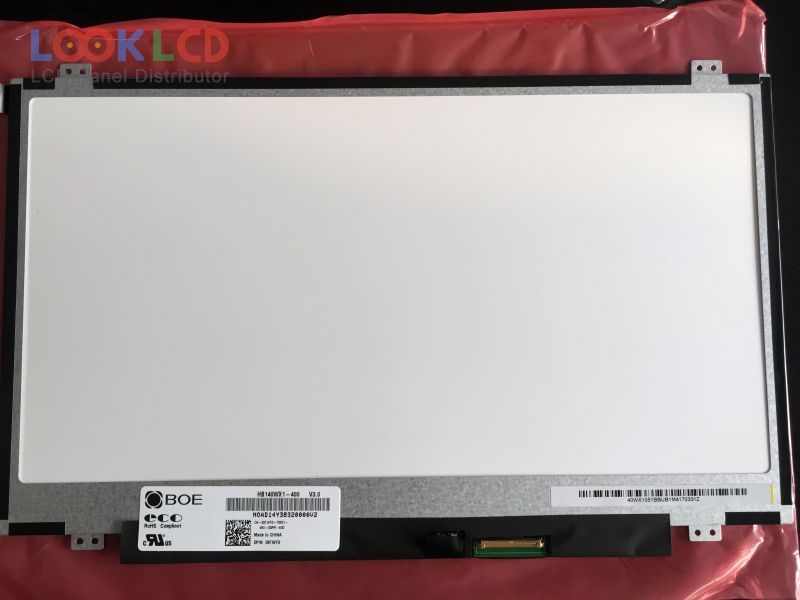

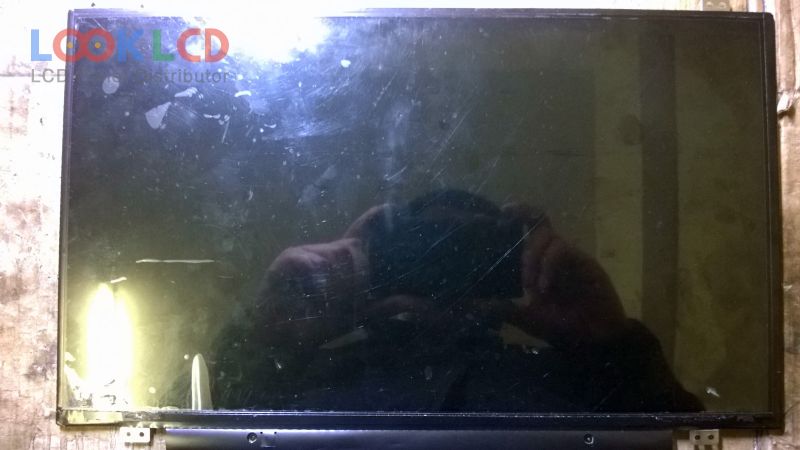

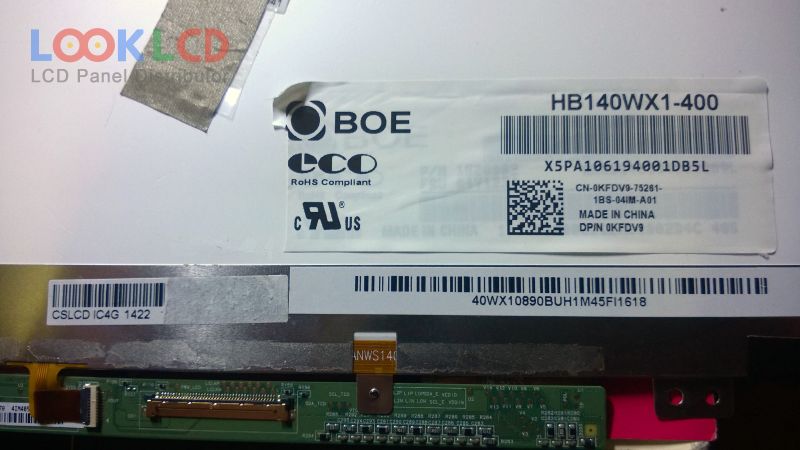

| Nambari ya Sehemu | HB140WX1-400 |
| Chapa | BOE |
| Ukubwa | 14.0 |
| Maombi | NBPC |
| Azimio | 1366×768 |
| Muundo | LCM |
| Mwangaza | 200 |
| CR | 600:1 |
| Rangi | 262K |
| Mwangaza nyuma | WLED |
| Kiolesura | LVDS |
| chapa ya paneli | BOE |
| mfano wa paneli | HB140WX1-400 |
| aina ya paneli | a-Si TFT-LCD , LCM |
| saizi ya paneli | 14.0 inch |
| azimio | 1366(RGB)×768 , WXGA |
| hali ya kuonyesha | TN, Normally White, Transmissive |
| eneo la kazi | 309.399×173.952 mm |
| muhtasari | 320.9×187.6×3.6 mm |
| mtindo wa sura | Flat (PCBA Flat, Depth 3.4~4.0mm) |
| uso | Antiglare |
| mwangaza | 200 cd/m² (Typ.) |
| uwiano wa utofautishaji | 600:1 (Typ.) |
| kuonyesha rangi | 262K (6-bit), CIE193145% |
| wakati wa majibu | 12 (Typ.)(Tr+Td) |
| angle ya kutazama | 45/45/20/40 (Typ.)(CR≥10)(L/R/U/D) |
| masafa | 60Hz |
| aina ya taa | 9S4PWLEDEmbedded (LED Driver) |
| kiolesura cha ishara | LVDS (1 ch, 6-bit), 40 pins |
| voltage ya pembejeo | 3.3V (Typ.) |
| maombi | NBPC |
